The SDM-based ISDM-4805 is an all-in-one solution for hassle-free operation, also a scalable, future-proofed plug-and-play solution. The integration of displays and plug-in computing capabilities delivers feature-rich functions while being easy to repair and upgrade.

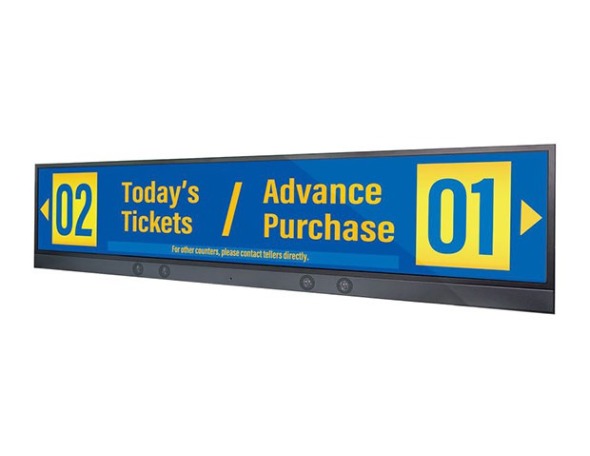

The ISDM-4805 has a 48-inch 4K, stretched LCD display with 3840 x 720 resolution, 1000 nits of high brightness and LED backlights, it can deliver the message in a more lively and conspicuous style to attract commuters. The ISDM-4805 support Litemax’s smart display modules: ASDM-APL5 (Intel®SDM-S) and APL6 (Intel®SDM-L). The ASDM-APL5 and APL6 can be easily connected to an SDM-ready display via a high-speed PCIe edge connector which supports 4K resolution displays and video capture and has built-in USB 3.0, HDMI 1.4, DisplayPort 1.2, Serial TX/RX and I2C signals.

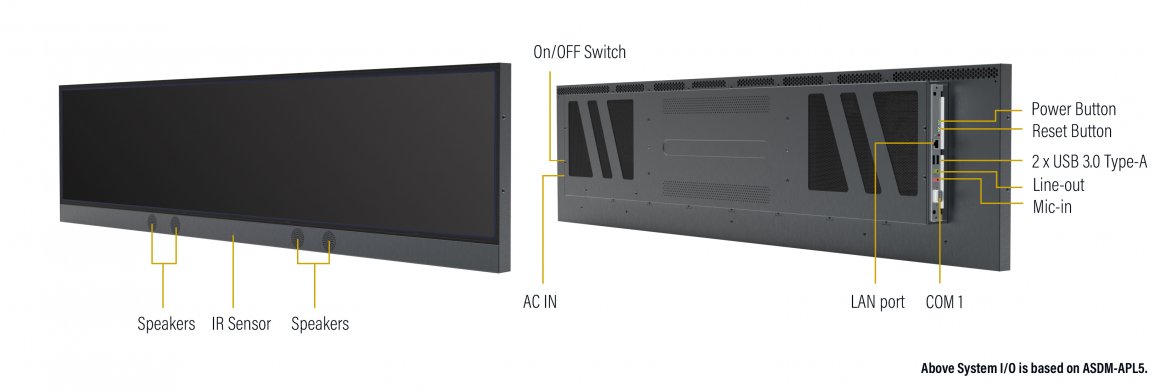

The ISDM-4805 has built-in speakers and one M.2 Key E 2230 slot for Wi-Fi. Apart from providing queuing service, ISDM-4805 can deliver timely and important message, turning the ticketing center into a multi-functional service center.
The ISDM-4805 has a 48-inch 4K, stretched LCD display with 3840 x 720 resolution, 1000 nits of high brightness and LED backlights, it can deliver the message in a more lively and conspicuous style to attract commuters. The ISDM-4805 support Litemax’s smart display modules: ASDM-APL5 (Intel®SDM-S) and APL6 (Intel®SDM-L). The ASDM-APL5 and APL6 can be easily connected to an SDM-ready display via a high-speed PCIe edge connector which supports 4K resolution displays and video capture and has built-in USB 3.0, HDMI 1.4, DisplayPort 1.2, Serial TX/RX and I2C signals.
The ISDM-4805 has built-in speakers and one M.2 Key E 2230 slot for Wi-Fi. Apart from providing queuing service, ISDM-4805 can deliver timely and important message, turning the ticketing center into a multi-functional service center.
Key Features:
- Intel® 10th Gen Core™ i9/i7/i5/i3 /Pentium®/Celeron® series processor (LGA1200 socket) with Q470E/H420E chipset
- Two 260-pin SO-DIMM up to 32GB DDR4 2933MHz SDRAM
- Multi-Display: HDMI/DP/DVI-I/VGA/LVDS (co-lay with eDP)
- Two Intel® Gigabit Ethernet ports, LAN1 Supports iAMT 12.0
- 1 xPCIe (x16), 1 x Mini-PCIe, 2 x M.2 M-key 2280
- 4 x SATA III, 4 x COM, 10x USB 3.2 Gen. and 2 x USB 2.0
- Supports 4K/2K resolution display
