High performance and stability to satisfy the requirements

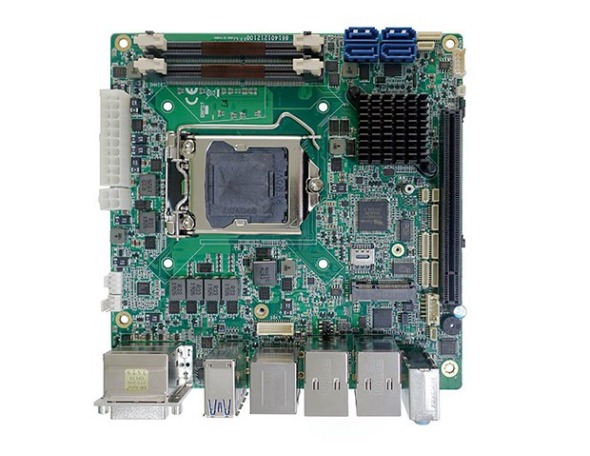

Built to provide high performance and stability to satisfy the requirements in various environments, the AMIX-CML0 boasts a wide range of I/O and rich expansion, including 1x PCI Express x16 and multiple M.2 slots for wireless connectivity, storage and increased functionality in a wide range of applications. It also features two Gigabit LAN, ten USB 3.2 (Gen1), two USB 2.0, four COM, and four SATA III ports.
Up to 31% better integer multi-tasking computing performance improvement
Up to 31% better integer multi-tasking compute intensive application performance Up to 31% better integer multi-tasking compute intensive application performance, AMIX-CML0 can deliver smooth and real-time 4K content streaming on multi displays, via HDMI, DisplayPort, DVI-I, eDP or 24-bit LVDS interface and VGA. In addition, the motherboard supports iAMT 12.0 technology for remote management and computer platform integrity functions.
Key Features:
- Intel® 10th Gen Core™ i9/i7/i5/i3 /Pentium®/Celeron® series processor (LGA1200 socket) with Q470E/H420E chipset
- Two 260-pin SO-DIMM up to 32GB DDR4 2933MHz SDRAM
- Multi-Display: HDMI/DP/DVI-I/VGA/LVDS (co-lay with eDP)
- Two Intel® Gigabit Ethernet ports, LAN1 Supports iAMT 12.0
- 1 xPCIe (x16), 1 x Mini-PCIe, 2 x M.2 M-key 2280
- 4 x SATA III, 4 x COM, 10x USB 3.2 Gen. and 2 x USB 2.0
- Supports 4K/2K resolution display
