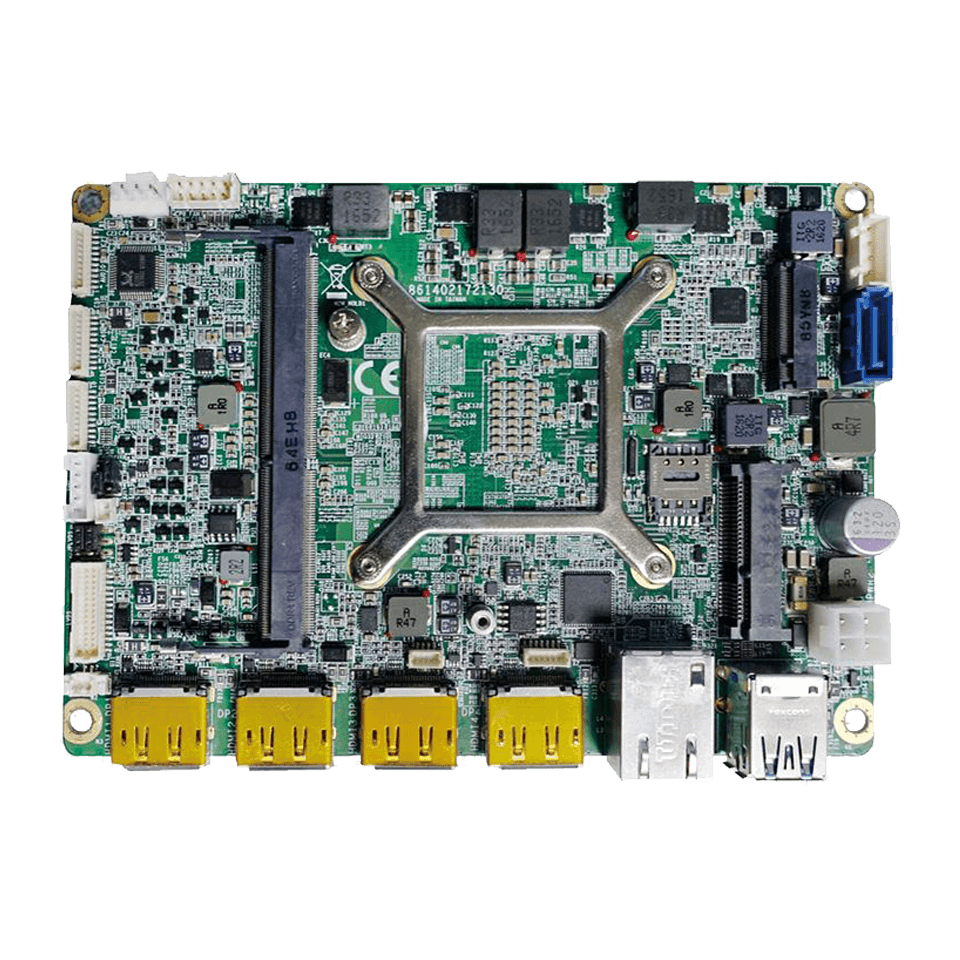

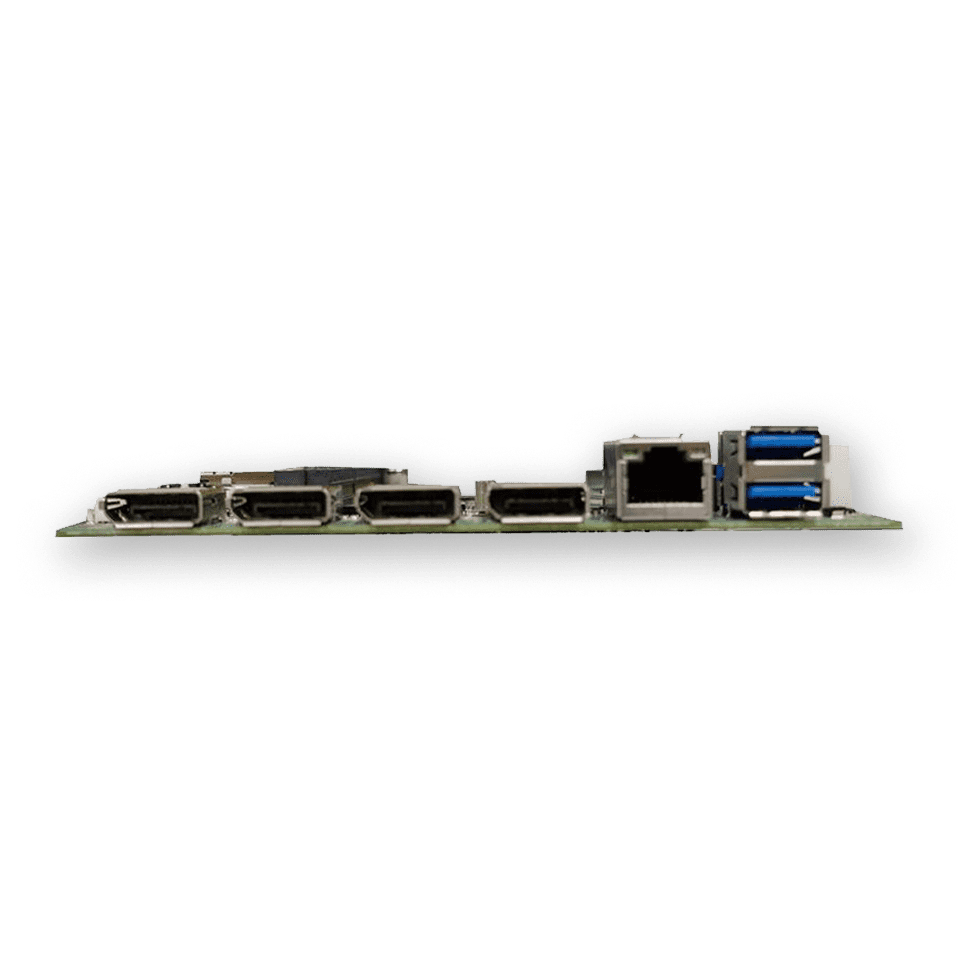

3.5吋單板電腦
AECX-V1K1
3.5" SBC with AMD? Ryzen? Embedded V1000 Series APU, 4 DP (HDMI)/LVDS, SATA III, COM, 5 USB, Intel? GbE LAN.
- AMD® Ryzen™ Embedded V1000/R1000 series APU on board
- High Performance “Zen” Core CPU + “VEGA” Graphics GPU
- Two 260-pin SO-DIMMs up to 32GB DDR4 3200MT/s SDRAM
- Multi-Display : 4 DP (HDMI) / LVDS (optional)
- One Intel® Gigabit Ethernet port
- 1 Mini PCIe (full-size, w/ Nano-SIM), 1 M.2 M-key 2280 (SSD) expansion slots
- 1 SATA III, 2 USB 3.1 and 3 USB 2.0 ports
- Supports 4K/2K Resolution Display
- DC-IN 12V or 19V ~ 24V, EuP/ErP 2013 Ready
主要特色
-
Quad Display
-
M.2
-
4K Stream
| Model name | AECX-V1K1/R1K1 |
| Form Factor | 3.5" Embedded |
| Dimensions (L)x(W)mm | 146mm x 102mm (5.75" x 4.01") |
| Processor |
AMD? Ryzen? Embedded V1000 series APU V1807B 3.35GHz QC (35-54W) V1756B 3.25GHz QC (35-54W) V1605B 2.0GHz QC (12-25W) V1202B 2.3GHz DC (12-25W) R1606B 2.6GHz DC (12-25W) R1505B 2.4GHz DC (12-25W) R1305B 1.5GHz DC |
| Chipset | AMD? RyzenTM Embedded V1000 APU integrated |
| BIOS | AMI UEFI Flash ROM |
| LAN Controller | Intel? I211 GbE |
| Audio Codec | Realtek ALC888S |
| Watchdog Timer | Yes |
| Memory | |
| Technology | DDR4 SDRAM support ECC, up to 3200 MT/s |
| Max. Capacity | Up to 32GB |
| Socket | 2 x 260-pin SO-DIMM |
| Display | |
| Graphic | AMD? VEGA graphics |
| Display Interface |
4 x DP v1.4 (HDMI v1.4 co-layout, 1 w/ co-layout LVDS) 1 x LVDS (Dual channel 18/24-bit) (co-layout DP1 optional) |
| I/O | |
| Expansion Slot |
1 x Mini-PCIe (Full-size w/ Nano-SIM) 1 x M.2 M-key 2280 (SSD) |
| LAN | 1 x 10/100/1000 Mbps |
| Serial ATA | 1 x SATA III |
| Audio | Line-in, Line-out, Mic-in |
| USB | 2 x USB 3.1, 3 x USB 2.0 |
| COM | 1 x RS-232/422/485, 1 x UART (combo GPIO) |
| Display | 4 x DP (HDMI co-layout, optional), 1 x LVDS (co-layout DP1, optional) |
| Digital I/O | 1 x 8-bit porgrammable GPIO (combo UART) |
| SMB | 1 x SMBus |
| PS/2 | N/A |
| Power Requirement | |
| Power connector | ATX 2x2-pin or ATX 2x2-pin R/A (optional) |
| Power Type | DC-in 12V or 19~24V |
| Power Mode | AT/ATX (by jumper selection) |
| Environment | |
| Storage Temperature | -40°C ~ 80°C (-40°F ~ 176°F) |
| Relative Humidity | 0% ~ 95% (non-condensing) |
| Operating Temperature |
0°C ~ 60°C (32°F ~ 140°F) standard -20°C ~ 70°C ( -4°F ~ 158°F) optional -40°C ~ 70°C (-40°F ~ 158°F) optional |
