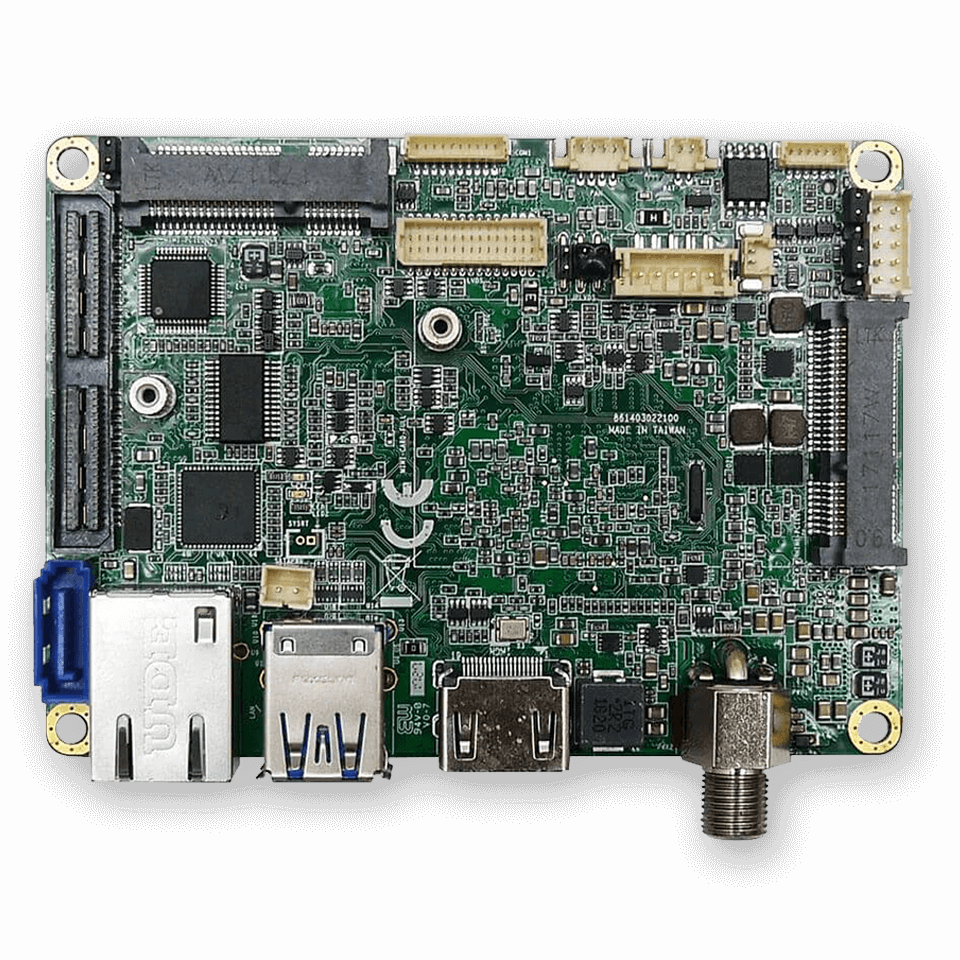

2.5吋 Pico-ITX 單板電腦
APIX-APL2
Pico-ITX Embedded Board with Intel? Atom? / Pentium?/ Celeron? processor, HDMI/LVDS/AMIO, SATA III, 2 COM, 5 USB, Intel? GbE LAN.
- Intel® Atom®/Pentium®/Celeron® processor (Apollo Lake)
- One 204-pin SO-DIMM DDR3L up to 8G DDR3L 1866MT/s SDRAM
- Multi-Display: HDMI/LVDS/AMIO(DP v1.2 interface, optional)
- One Intel® Gigabit Ethernet ports
- 2 Mini-PCIe (1 Full size combo mSATA, 1 Half size), 1 AMIO expansion slots
- 1 SATA III , 2 COM, 2 USB 3.0 and 3 USB 2.0
- Supports 4K/2K Resolution Display
- DC-in 12V, EuP/ErP 2013 Ready
主要特色
-
Multi Display
-
Fanless
APIX-APL2, the latest addition to its family of PICO-ITX form factor is the compact Embedded Boards in the size of 100x72mm, it creates and fulfills various space-constrained applications. And small footprint doesn’t necessarily sacrifice expandability, the 2.5" PICO-ITX boards have low power consumption, support multiple I/O and an extended temperature depending on the equipment variant.
Industry 4.0 is rapidly transforming infrastructure requirements. As a consequence, there is an increasing demand for space-constraint applications, such as those based on a Pico-ITX form factor. The compact design, plus the basic embedded feature set, makes our Pico-ITX highly versatile. Thanks to their low power consumption with a TDP of between 6 and 12 Watt, our single-chip Pico-ITX solutions are particularly well suited for passively cooled and enclosed systems that can be used without any concerns in harsh environments. Typical applications include control of large machines with decentralized, distributed intelligence, robotics, all types of intelligent measurement and analysis devices, and high-performance IoT computers with low power consumption.
APIX-APL2, PICO-ITX board is capable of powering a range of Intel? MovidiusTM VPU to bring the AI and Edge Computing for industrial and embedded application such as smart factory, smart retail, and smart city.
Industry 4.0 is rapidly transforming infrastructure requirements. As a consequence, there is an increasing demand for space-constraint applications, such as those based on a Pico-ITX form factor. The compact design, plus the basic embedded feature set, makes our Pico-ITX highly versatile. Thanks to their low power consumption with a TDP of between 6 and 12 Watt, our single-chip Pico-ITX solutions are particularly well suited for passively cooled and enclosed systems that can be used without any concerns in harsh environments. Typical applications include control of large machines with decentralized, distributed intelligence, robotics, all types of intelligent measurement and analysis devices, and high-performance IoT computers with low power consumption.
APIX-APL2, PICO-ITX board is capable of powering a range of Intel? MovidiusTM VPU to bring the AI and Edge Computing for industrial and embedded application such as smart factory, smart retail, and smart city.
| Model name | APIX-APL2 |
| Form Factor | 2.5" PICO-ITX |
| Dimensions (L)x(W)mm | 100mm x 72mm (3.94" x 2.84") |
| Processor |
Intel? ATOM?/Celeron?/Pentium? processors Intel? ATOM? x5-E3940 1.6GHz (9.5W) Intel? ATOM? x5-E3930 1.3GHz (6.5W) Intel? Pentium? N4200 QC 1.1GHz (6W) Intel? Celeron? N3350 DC1.1GHz (6W) |
| Chipset | Intel? Apollo Lake-I SoC Integrated |
| BIOS | AMI UEFI Flash ROM |
| LAN Controller | Intel? I211 GbE |
| Audio Codec | Realtek ALC888S |
| Watchdog Timer | Yes |
| Memory | |
| Technology | DDR3L up to 1866MHz SDRAM |
| Max. Capacity | Up to 8GB |
| Socket | 1 x 204-pin SO-DIMM |
| Display | |
| Graphic | Intel? HD Gen. 9-LP graphics |
| Display Interface | HDMI, DP, LVDS (Dual channel 18/24-bit) |
| I/O | |
| Expansion Slot | 2 x Mini-PCIe (1 x Full-size w/ mSATA, 1 x Half-size) |
| LAN | 1 x 10/100/1000 Mbps |
| Serial ATA | 1 x SATAIII |
| Audio | Line-in, Line-out, Mic-in |
| USB | 2 x USB 3.0, 3 x USB 2.0 |
| COM | 1 x RS-232, 1 x RS-232/422/485 |
| Display | 1 x HDMI, 1 xDP(AMIO optional), 1 x LVDS |
| Digital I/O | 1 x 8-bit |
| SMB | 1 x SMBus |
| PS/2 | N/A |
| Power Requirement | |
| Power connector | 1 x DC-wafer 1x2-pin or DC-Jack screw type (optional) |
| Power Type | DC-in 12V |
| Power Mode | AT/ATX (by jumper selection) |
| Environment | |
| Storage Temperature | -40°C ~ 80°C (-4°F ~ 176°F) |
| Relative Humidity | 0% ~ 95% (non-condensing) |
| Operating Temperature |
0°C ~ 60°C (32°F ~ 140°F) standard -20°C ~ 70°C (-4°F ~ 158°F) optional -40°C ~ 70°C (-40°F ~ 158°F) optional |
