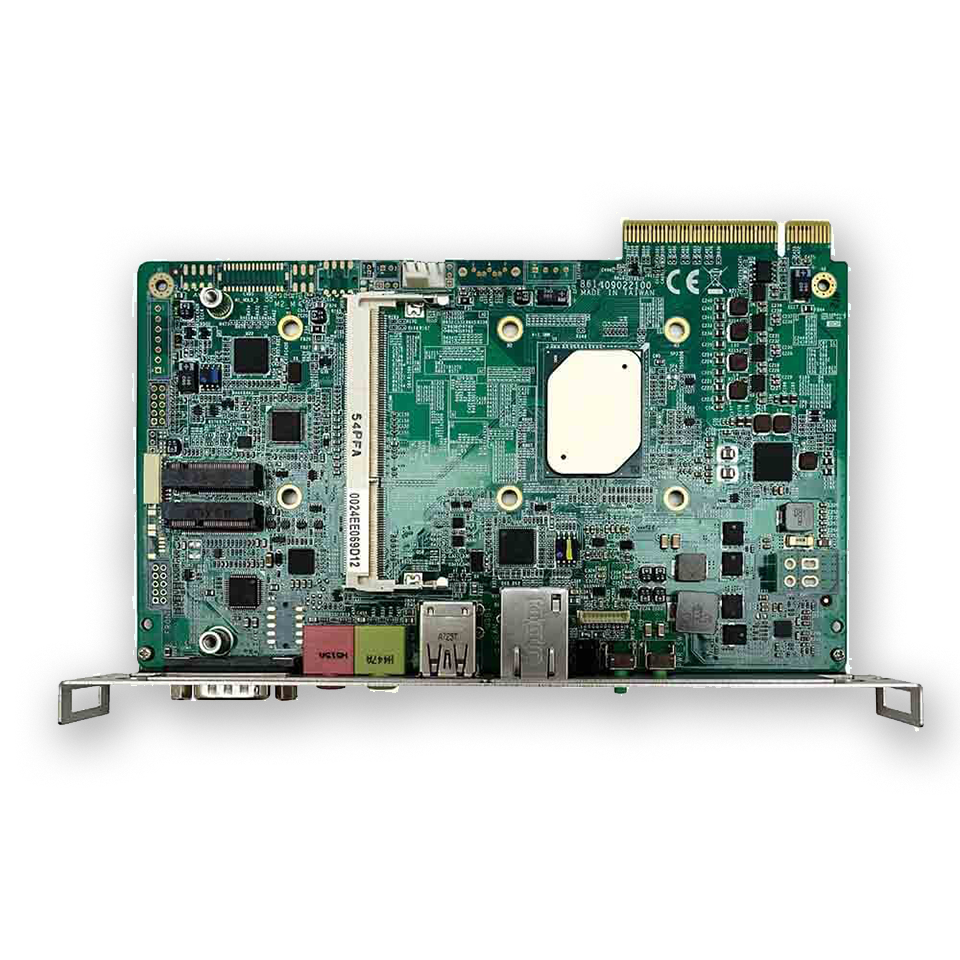

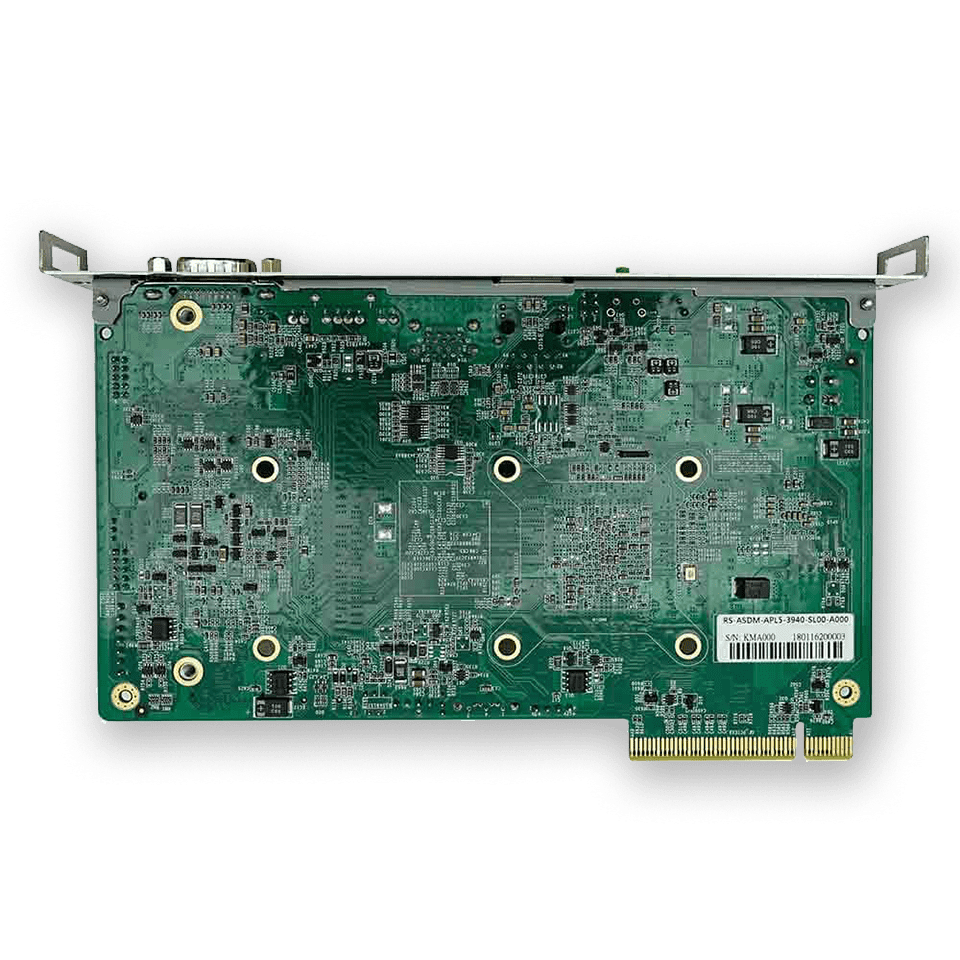

Intel? 智能顯示模組
ASDM-APL5
Intel? Smart Display Module(Intel? SDM) with Intel? Atom? E3900 processor, COM, 2 USB, One GbE LAN.
- Intel® Apollo Lake SoC on board
- One 204-pin SO-DIMM DDR3L up to 1866MT/s 8GB SDRAM
- One Intel® Gigabit Ethernet ports
- M.2 (M-Key 2242), M.2 (E-Key 2230) expansion slots
- COM, 2 USB 3.0
- EuP/ErP 2013 Ready
ASDM-APL5/APL6 is followed Intel? Smart Display Module. It’s powered by the onboard Intel? ATOM?/Pentium?/Celeron? processor (code name: Apollo Lake) and the sleekest all-in-one module which makes for a thinner display. The ASDM-APL5/APL6 can be easily connected to an SDM-ready display via a high-speed PCIe edge connector which supports 4K resolution displays and video capture and has built-in USB 3.0, HDMI 1.4, DisplayPort 1.2, Serial TX/RX and I2C signals.
Intel? Smart Display Module (Intel? SDM) is a scalable, future-proofed plug-and-play solution for digital signage. Its design omits housing, so it can be fully integrated into visual IoT applications that require minimal space with maximum performance. The integration of displays and plug-in computing capabilities delivers feature-rich functions while being easy to repair and upgrade.
Intel? Smart Display Module (Intel? SDM) is a scalable, future-proofed plug-and-play solution for digital signage. Its design omits housing, so it can be fully integrated into visual IoT applications that require minimal space with maximum performance. The integration of displays and plug-in computing capabilities delivers feature-rich functions while being easy to repair and upgrade.
| Model name | ASDM-APL5 |
| Form Factor | Smart Display Module |
| Dimensions (L)x(W)mm | 175 mm x 100 mm |
| Processor |
Intel? Atom? x5-E3940 1.60GHz / 1.80GHz (Base/Burst) Quad-Core SoC (9.5W) Intel? Pentium? x7 E3950 1.60GHz / 2.00GHz (Base/Burst) Quad-Core SoC (12W) Intel? Celeron? x5 E3930 1.30GHz / 1.80GHz (Base/Burst) Dual-Core SoC (6.5W) Intel? Ato |
| Chipset | Intel? Apollo Lake SoC integrated |
| BIOS | AMI UEFI Flash ROM |
| LAN Controller | Intel? I211 GbE |
| Audio Codec | Realtek ALC662 HD |
| Memory | |
| Technology | DDR3L up to 1866MHz SDRAM |
| Max. Capacity | Up to 8GB |
| Socket | 1 x 204-pin SO-DIMM |
| Display | |
| Graphic | Intel? HD Gen. 9-LP Graphics |
| Display Interface | DP / HDMI (Golden Finger) |
| I/O | |
| Expansion Slot | 1 x M.2 E-key 2230 (WiFi/BT), 1 x M.2 M-key 2242 (SSD) |
| LAN | 1 x 10/100/1000 Mbps |
| Audio | MIC-in, Line-out, |
| USB | 2 x USB 3.0 (Rear I/O) |
| COM | 1 x RS-232/422/485 (Rear I/O) |
| Display | HDMI , DP (Golden Finger) |
| Environment | |
| Relative Humidity | 0% ~ 95% (non-condensing) |
| Operating Temperature |
0°C ~ 60°C (32°F ~ 140°F) standard -20°C ~ 70°C (-4°F ~ 158°F) optional -40°C ~ 70°C (-40°F ~ 158°F) optional -40°C ~ 80°C (-4°F ~ 176°F) |
