入門款嵌入式電腦

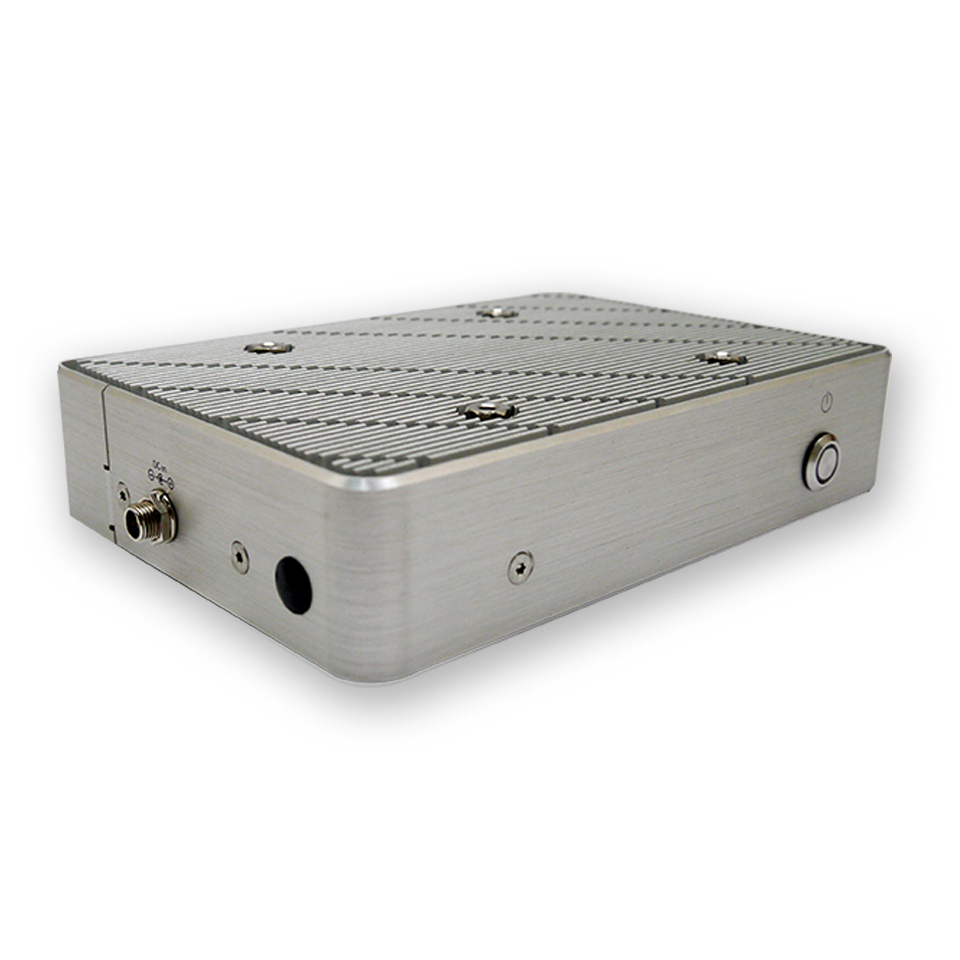

IBOX-APL7-B-TYPE
Fanless Embedded System with Intel? ATOM?/ Pentium?/Celeron? processor, DP, 2 USB and GbE LAN
- Intel® Atom™/Pentium®/Celeron® (Apollo Lake SoC) onboard processor
- 204-pin DDR3L 1866MHz SDRAM; max. up to 8GB
- 1 DP, 2 USB, 1 COM, 1 LAN
- 1 x M.2 B+M-key 3042 for WWAN and w/uSIM
- 1 x M.2 M-key 2242 for Storage
- 12 to 36VDC wide range DC input
主要特色
-
Fanless
| Model name | IBOX-APL7 B TYPE |
| System | |
| CPU |
Intel? AtomTM x7 E3950 1.6GHz (12W) Intel? AtomTM x5 E3940 1.6GHz (9.5W) Intel? AtomTM x5 E3930 1.3GHz (6.5W) Intel? Pentium? N4200 QC 1.1GHz (6W) Intel? Celeron? N3350 DC 1.1GHz (6W) |
| Chipset | Intel? Apollo Lake-I SoC intrgrated |
| BIOS | AMI UEFI Flash ROM |
| System memory | 1 x 204-pin DDR3L 1866MHz SDRAM; max. up to 8GB |
| Graphic | Intel? HD Gen. 9-LP graphics |
| Watchdog timer | Yes |
| I/O | |
| USB | 2 x USB 3.0 |
| COM | 1 x COM (RS232/422/485) |
| LAN | 1 |
| Display | 1 x DP |
| Audio | N/A |
| PS/2 | N/A |
| Others | 2 x SMA hole |
| Storage Support | |
| HDD | N/A |
| M.2 | 1 x M.2 M-key 2242 |
| mSATA | N/A |
| Expansion | |
| Mini-PCIe | 1 x Full-size |
| M.2 | 1 x M.2 B+M-key 3042 (WWAN w/uSIM) |
| Power | |
| Power supply | Wide range DC 12V or 19 ~ 24V input (by jumper selection) with AC 60W adaptor; DC 12V output, DC jack screw connector |
| Environmental | |
| Operating Temperature | 0°C ~ 60°C (Optional -20°C, -40°C) |
| Storage Temperature | -20°C ~ 80°C |
| Relative Humidity | 0% ~ 90% (non-condensing) |
| Mechanical | |
| Construction | Aluminum extrusion and heavy-duty steel |
| Standard color | Silver |
| Mounting | Wall / VESA 75 / DIN(Optional) |
| Weight | 0.8 kg |
| Dimensions (W)x(D)x(H)mm | 169mm(W) x 117.7mm(D) x 36mm(H) |
