入門款嵌入式電腦

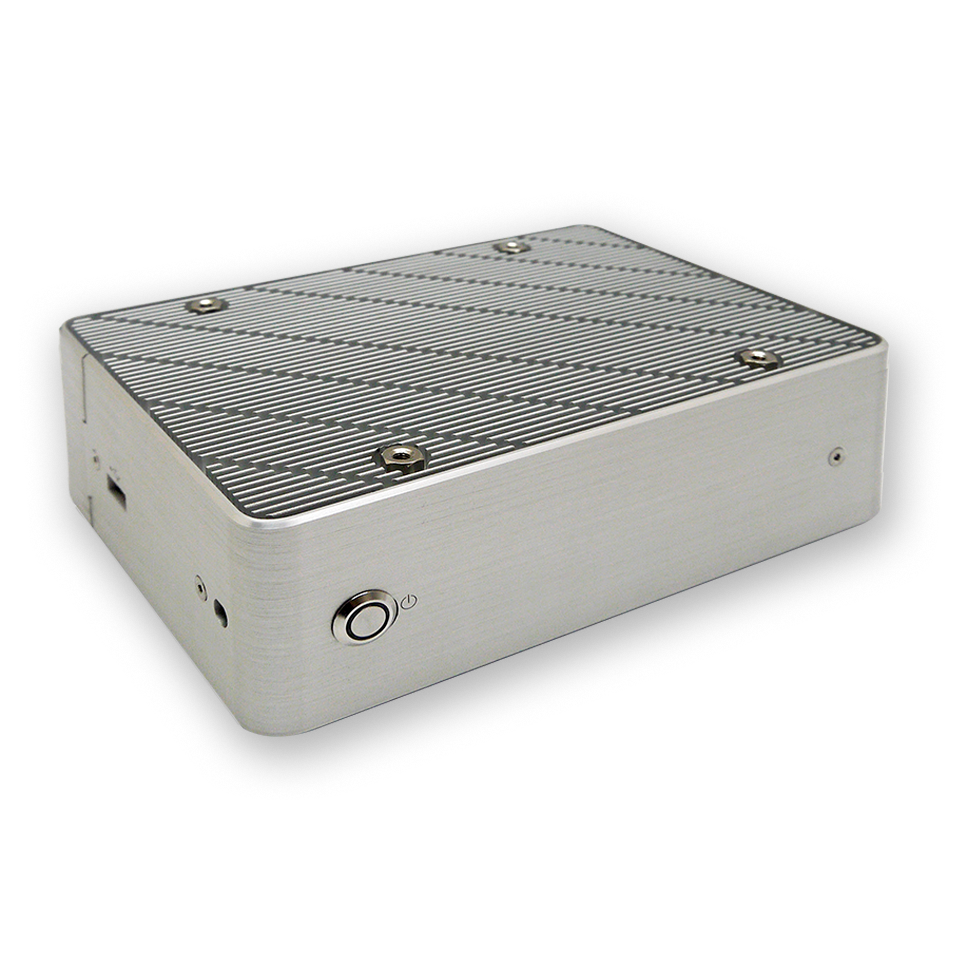

IBOX-APL7-C-TYPE
Fanless Embedded System with Intel? ATOM?/Pentium?/ Celeron? processor, DP, 3 USB and GbE LAN
- Intel® ATOM™/Pentium®/ Celeron® processor
- 1 x 204-pin DDR3L 1866MHz SDRAM; max. up to 8GB
- 1 DP, 2 USB 3.0, 1 USB2.0, 3 COM, 1 LAN
- 1 full-size mPCIe and 1 x M.2 B+M-key 3042 for expasion
- 12 to 36VDC wide range DC input
主要特色
-
Fanless
| Model name | IBOX-APL7 C TYPE |
| System | |
| CPU |
Intel? AtomTM x7 E3950 1.6GHz (12W) Intel? AtomTM x5 E3940 1.6GHz (9.5W) Intel? AtomTM x5 E3930 1.3GHz (6.5W) Intel? Pentium? N4200 QC 1.1GHz (6W) Intel? Celeron? N3350 DC 1.1GHz (6W) |
| Chipset | Intel? Apollo Lake-I SoC intrgrated |
| BIOS | AMI UEFI Flash ROM |
| System memory | 1 x 204-pin DDR3L 1866MHz SDRAM; max. up to 8GB |
| Graphic | Intel? HD Gen. 9-LP graphics |
| Watchdog timer | Yes |
| I/O | |
| USB | 2 x USB 3.0, 1 x USB 2.0 |
| COM | 3 x COM (1 x RS232/422/485, 2 x RS232) |
| LAN | 1 |
| Display | 1 x DP |
| Audio | N/A |
| PS/2 | N/A |
| Others | 2 x SMA hole |
| Storage Support | |
| HDD | 1 x 2.5" HDD |
| M.2 | 1 x M.2 M-key 2242 |
| mSATA | N/A |
| Expansion | |
| Mini-PCIe | 1 x Full-size |
| M.2 | 1 x M.2 B+M-key 3042 (WWAN w/uSIM) |
| Power | |
| Power supply | Wide range DC 12V or 19 ~ 24V input (by jumper selection), Phoenix connector |
| Environmental | |
| Operating Temperature | 0°C ~ 60°C (Optional -20°C, -40°C) |
| Storage Temperature | -20°C ~ 80°C |
| Relative Humidity | 0% ~ 90% (non-condensing) |
| Mechanical | |
| Construction | Aluminum extrusion and heavy-duty steel |
| Standard color | Silver |
| Mounting | Wall / VESA 100 / DIN(Optional) |
| Weight | 1 kg |
| Dimensions (W)x(D)x(H)mm | 178 mm(W) x 123.2 mm(D) x 49.8mm(H) |
下載
-
類型
Datasheet
發(fā)布日期2021/Aug/21
