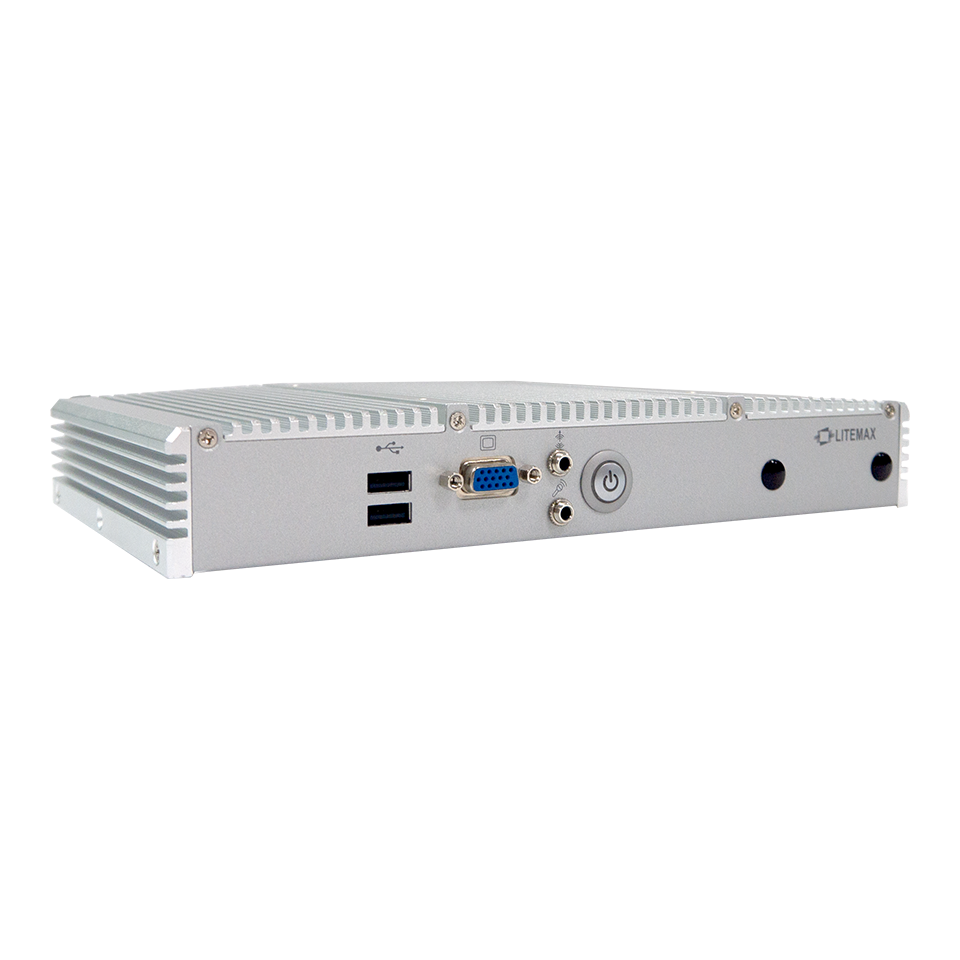

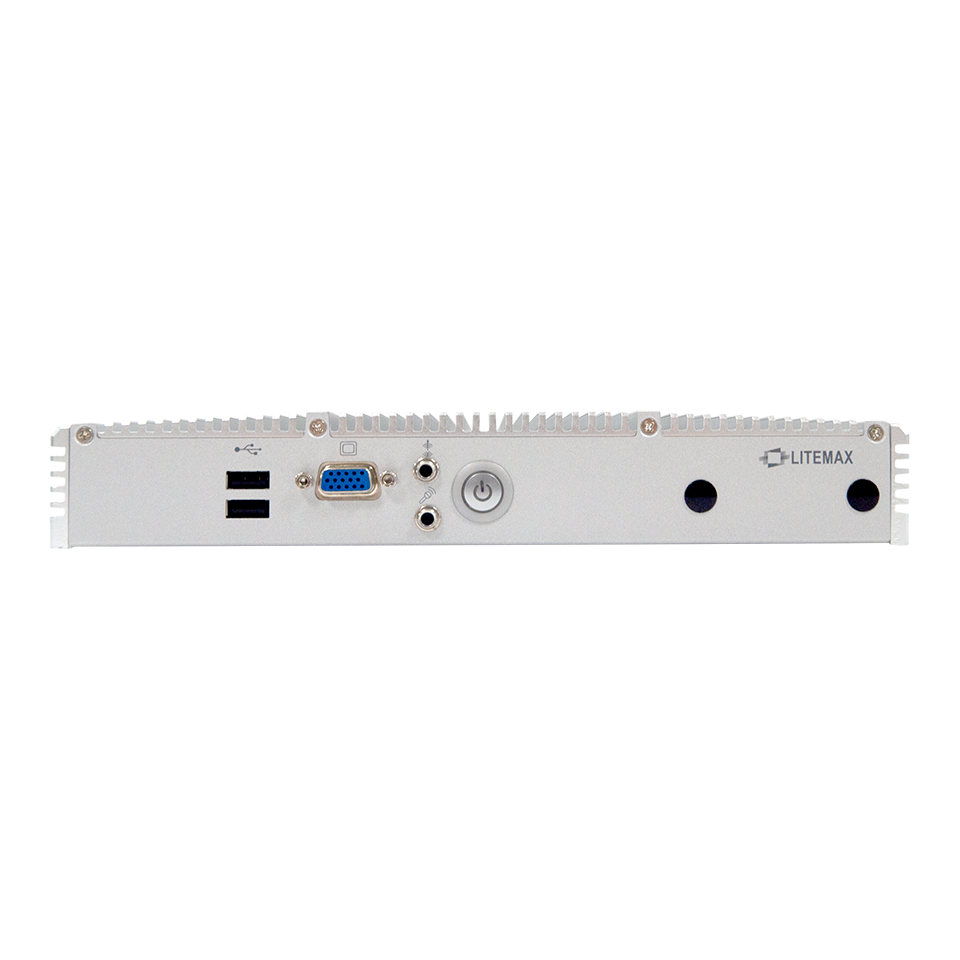

Entry BOX PC
IBOX-APL7-D-TYPE
Fanless Box system with Intel? Atom?/Pentium?/Celeron? (Apollo Lake) Processor, 4 USB, 1 COM, GbE LAN
- Intel® Atom™ (Apollo Lake) onboard processor
- Dual display: 2HDMI/VGA

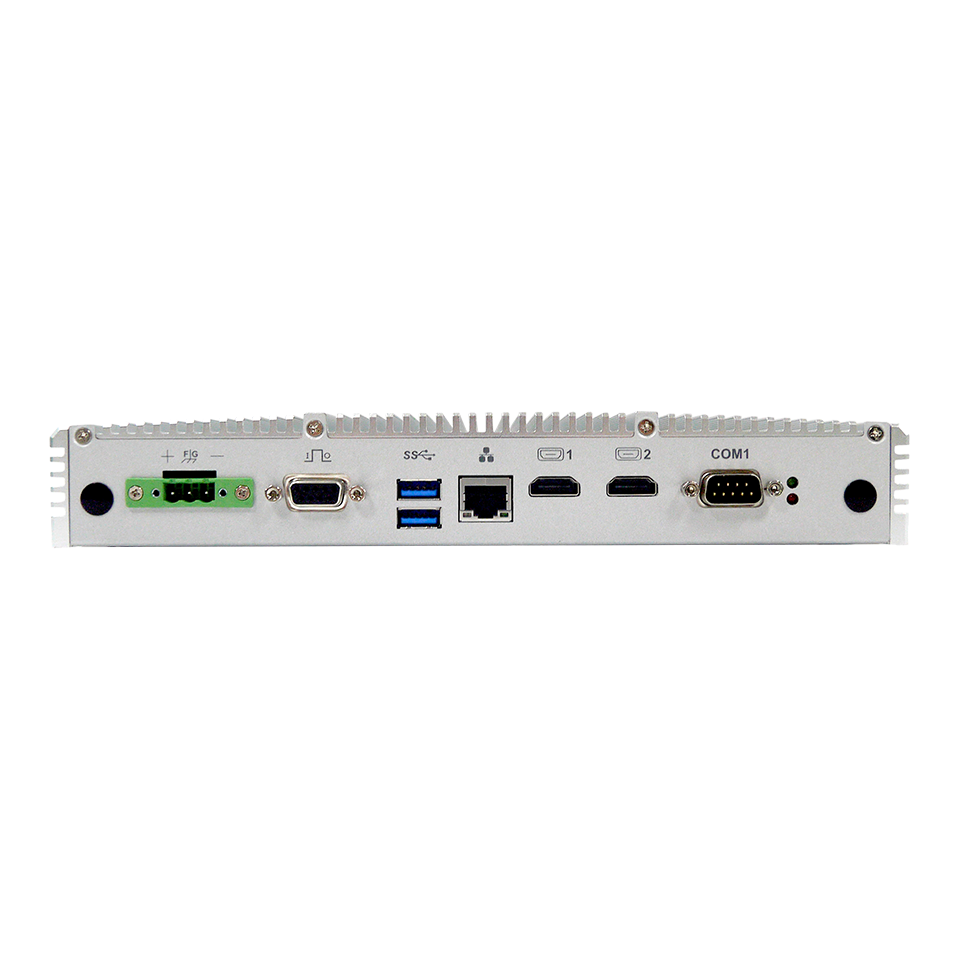

- 2 HDMI/1VGA, 4 USB, 1 COM, 1 LAN,1 DIO ,1 AUDIO
- DC 12 ~ 24V input with phoenix connector
- Wide temperature: 0°C ~ 60°C
- Watchdog timer
| Model name | IBOX-APL7 D TYPE |
| System | |
| CPU |
Intel? AtomTM x7 E3950 1.6GHz (12W) Intel? AtomTM x5 E3940 1.6GHz (9.5W) Intel? AtomTM x5 E3930 1.3GHz (6.5W) Intel? Pentium? N4200 QC 1.1GHz (6W) Intel? Celeron? N3350 DC 1.1GHz (6W) |
| Chipset | Intel? Apollo Lake-I SoC intrgrated |
| BIOS | AMI UEFI Flash ROM |
| System memory | 1 x 204-pin DDR3L 1866MHz SDRAM; max. up to 8GB |
| Graphic | Intel? HD Gen. 9-LP graphics |
| Watchdog timer | Yes |
| I/O | |
| USB | 2 x USB 3.0, 2 x USB 2.0 |
| COM | 1 x COM (1 x RS232/422/485) |
| LAN | 1 |
| Display | 2x HDMI, 1x VGA |
| Audio | Mic-in, Line-out |
| PS/2 | N/A |
| Others | 1 x DIO |
| Storage Support | |
| HDD | 1 x 2.5" HDD |
| M.2 | 1 x M.2 M-key 2242 |
| mSATA | N/A |
| Expansion | |
| Mini-PCIe | 1 x Full-size |
| M.2 | 1 x M.2 B+M-key 3042 (WWAN w/uSIM) |
| Power | |
| Power supply | Wide range DC 12V ~ 24V input, Phoenix connector |
| Environmental | |
| Operating Temperature | 0°C ~ 60°C (Optional -20°C, -40°C) |
| Storage Temperature | -20°C ~ 80°C |
| Relative Humidity | 0% ~ 90% (non-condensing) |
| Mechanical | |
| Construction | Aluminum extrusion and heavy-duty steel |
| Standard color | Silver |
| Mounting | Wall mount / VESA 100 |
| Weight | 1.77 kg |
| Dimensions (W)x(D)x(H)mm | 261 mm(W) x 146 mm(D) x 40.5 mm(H) |
