IBOX-JSN0
AI computing platform based on NVIDIA? Jetson Nano? for AIoT edge computing applications
- NVIDIA® Jetson Nano™ with Maxwell™ GPU architecture with 128 NVIDIA CUDA® cores
- High AI computing performance for GPU-accelerated processing
- Supports Ethernet x 9 ports (PoE x 8, GbE x 1)
- Supports ONVIF 2.0, 2MP IP camera up to 8 channels
- Wide operating temperature from -20°C to +65°C
- JetPack supported
主要特色
-
PoE Ports
-
AI

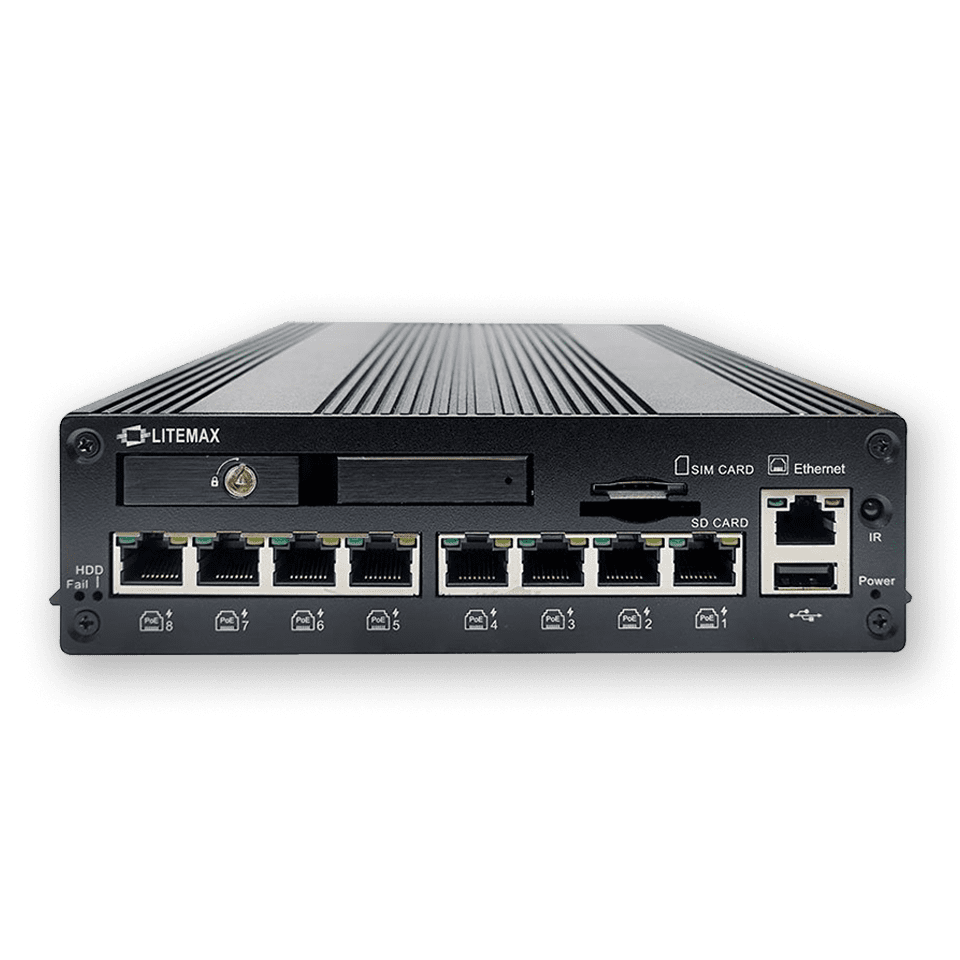

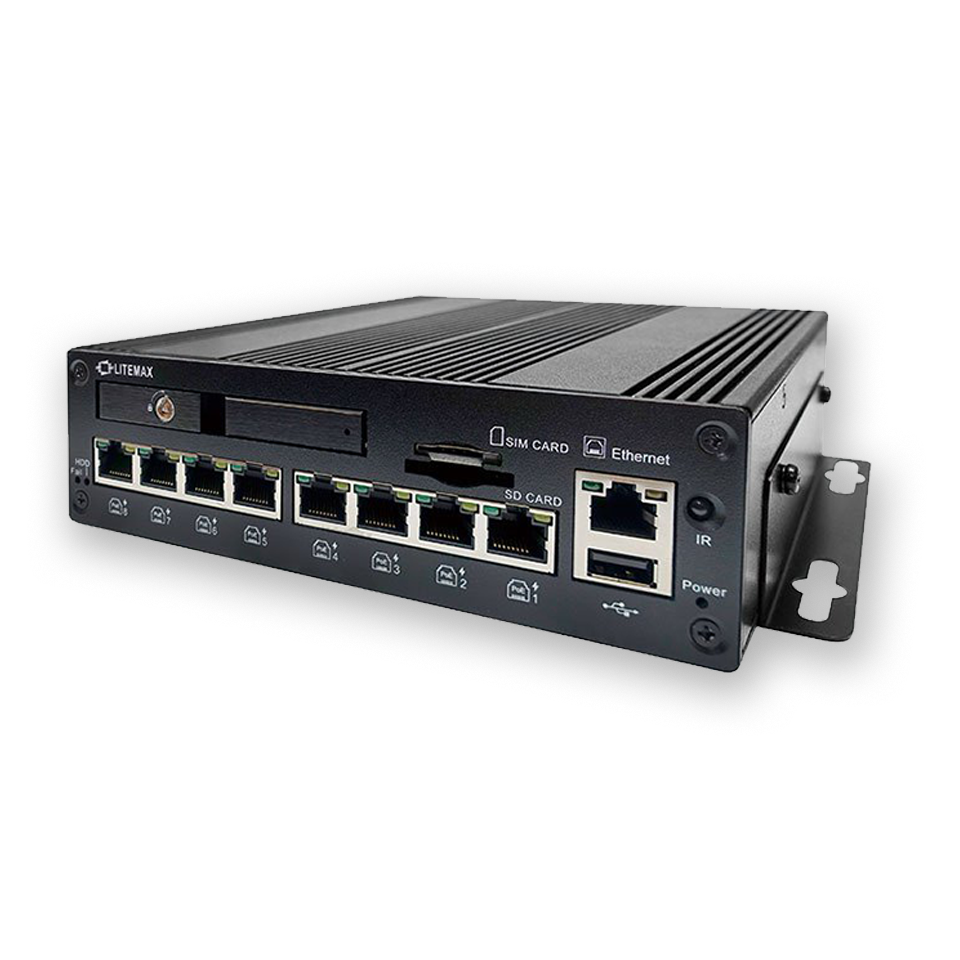

IBOX-JSN0, Box computer powered by NVIDIA? Jetson Nano?, which has a powerful quad-core ARM? Cortex?-A57 MPCore processor and NVIDIA Maxwell? GPU architecture with 128 NVIDIA CUDA cores. With the NVIDIA Jetson Nano, the IBOX-JSN0 is able to provide both performance and price suitable for entry to mid-level deployment of AIoT applications.

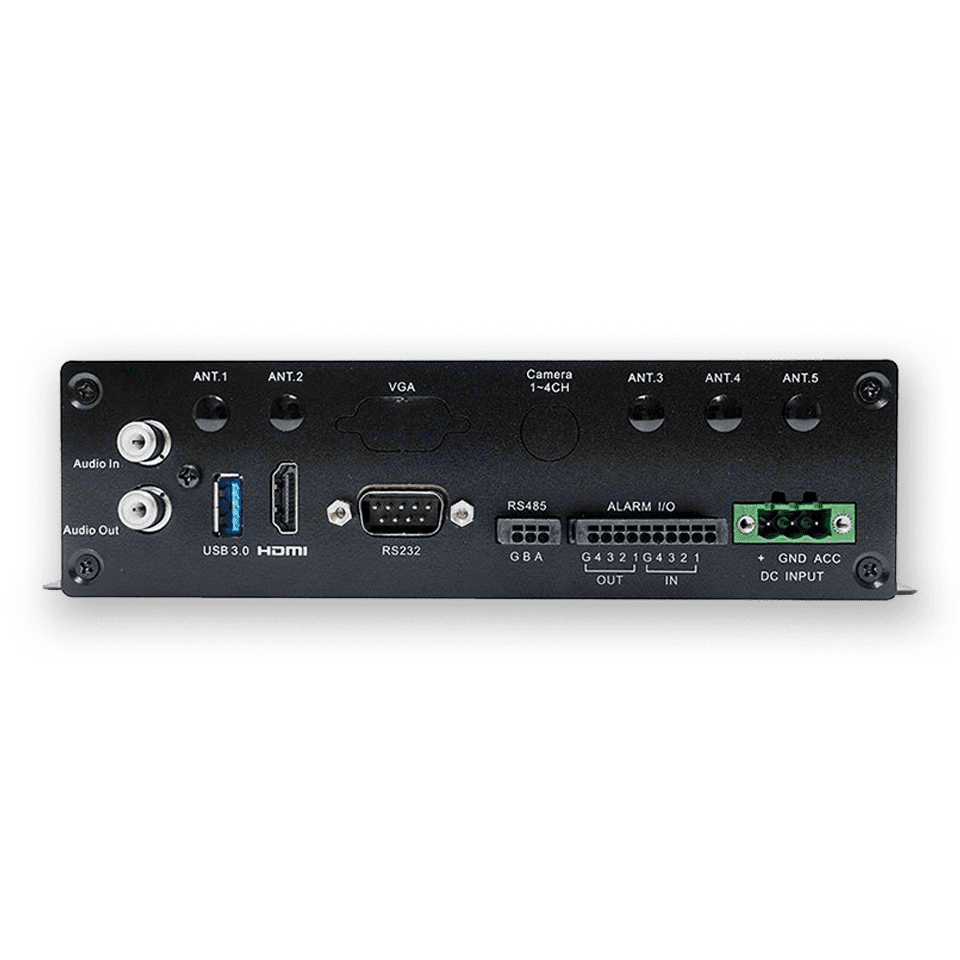

The IBOX-JSN0 has rich I/O interfaces including eight PoE ethernet ports which supports up to eight IP cameras, one USB 3.0 port, one USB 2.0 port, one RS-232 and one RS-485 ports, Audio input/output, and one HDMI 2.0 with 4K2K supported. The IBOX-JSN0 has a 16GB eMMC onboard via the Jetson Nano, and it’s also equipped with one 2.5” SSD bay for massive data processing. Besides, this reliable embedded system has one full-size PCI Express Mini Card slot and one SIM slot for 3G/4G, GPS, Wi-Fi and Bluetooth connections.
The IBOX-JSN0 has rich I/O interfaces including eight PoE ethernet ports which supports up to eight IP cameras, one USB 3.0 port, one USB 2.0 port, one RS-232 and one RS-485 ports, Audio input/output, and one HDMI 2.0 with 4K2K supported. The IBOX-JSN0 has a 16GB eMMC onboard via the Jetson Nano, and it’s also equipped with one 2.5” SSD bay for massive data processing. Besides, this reliable embedded system has one full-size PCI Express Mini Card slot and one SIM slot for 3G/4G, GPS, Wi-Fi and Bluetooth connections.
| Model name | IBOX-JSN0 |
| System | |
| CPU | Quad-Core ARM? Cortex? A57 MPCore processor |
| GPU | NVIDIA Maxwell with 128 NVIDIA CUDA Cores |
| System memory | LPDDR4 4GB-64bit on board |
| Flash | 16Gb of eMMC |
| I/O | |
| USB | USB 2.0 x 1, USB 3.0 x 1 |
| COM | 2 x COM (RS-232 x 1, RS485 x 1) |
| LAN | 9 (PoE x 8, GbE x 1) |
| Display | 1 x HDMI, 1 x VGA |
| Audio | 1 x RCA input, 1 x RCA output |
| Storage Support | |
| HDD | 1 x SSD |
| Expansion | |
| Mini-PCIe | 2 (1 x full-size, half-size x 1) |
| Power | |
| Power supply | DC 9-36V (with ignition pin) |
| Environmental | |
| Operating Temperature | -20°C ~ 65°C |
| Storage Temperature | -20°C ~ 85°C |
| Relative Humidity | 95% @ 40°C (non-condensing) |
| Mechanical | |
| Construction | Aluminum extrusion and heavy-duty steel |
| Standard color | Black |
| Weight | 1.8 kg |
| Dimensions | 156.6mm(W) x 183.3mm(D) x 50.5mm(H) |
