高效能嵌入式電腦

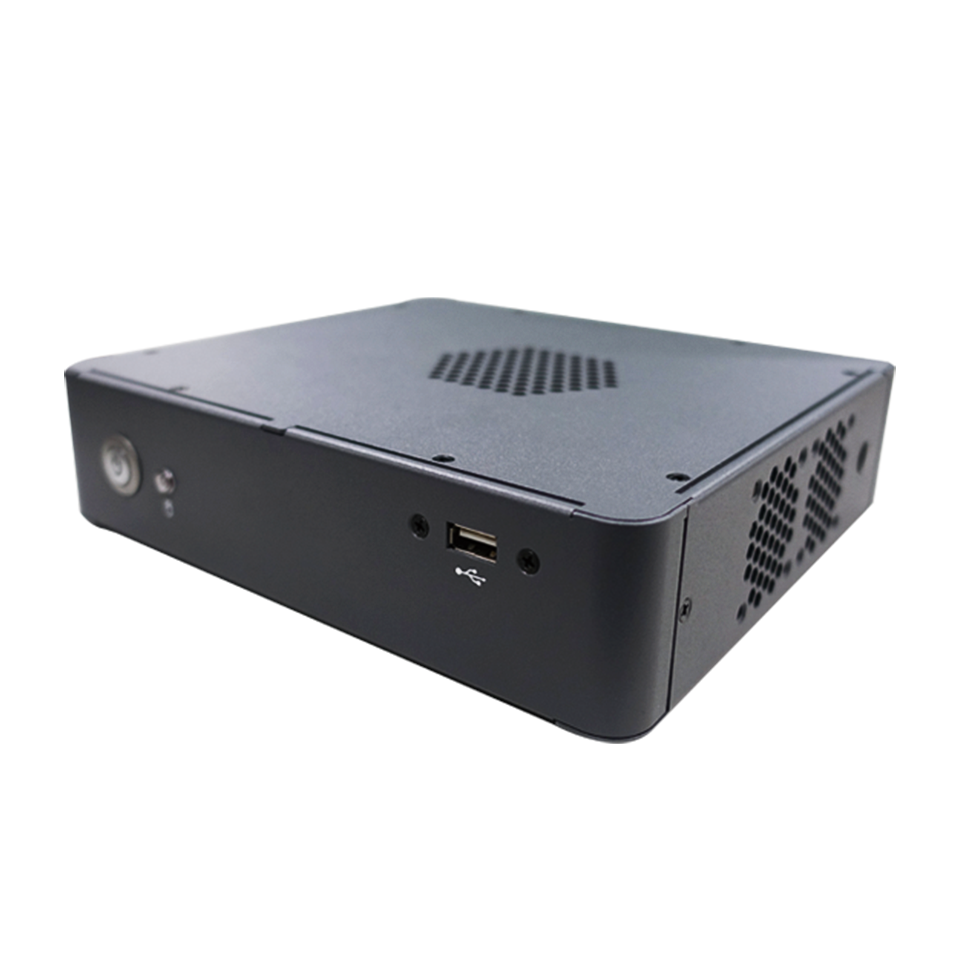

IBOX-V1K0
Embedded Box System with AMD? Ryzen? Embedded V1605 Processor
- ? AMD® Ryzen™ Embedded V1000 APU on board
- ? High Performance "Zen" Core CPU + "VEGA" Graphics GPU
- ? Four 4K@60 monitors support
- ? Multi-Display: 4 x HDMI
- ? 2 x LAN, 2 x USB 3.1
- ? 1 x SATA III, 1 x Mini-PCIe(w/uSIM), 1 x M.2 M-key 2260(SSD)
- ? DC-in 12V
主要特色
-
Quad Display
-
M.2
-
AI
IBOX-V1K0/V1K1 series, compact box computer, powered by AMD? Ryzen? Embedded V1000 Soc, a breed of embedded board and box PCs can power up to four independent display in 4K and provide uncompromising performance, versatility and sophisticated automation capabilities across a wide range of applications.
IBOX-V1K0/V1K1 uses up to 32GB of dual channel DDR4 3200 MT/s memory (both ECC and non-ECC) with higher memory bandwidth for better performance and efficiency. The new integrated AMD Radeon? Vega graphics with up to 11 compute units marks the cutting edge of embedded graphics. It supports up to four independent displays with up to 4K UHD resolution and 10-bit HDR, as well as DirectX 12 and OpenGL 4.4 for 3D graphics. The integrated video engine enables hardware-accelerated streaming of HEVC (H.265) video in both directions.
IBOX-V1K0/V1K1 adopts 10/100/1000 Mbps speeds Ethernet controller and flexible I/O interface options with: 1 x Mini-PCIe (full size), 1 x M.2 M Key, 1 x SATA Gen. 3 @ 6.0Gb/s, 2 x USB 3.1, 3 x USB 2.0, 3 x COM ports, watchdog timer, and GPIO to fulfill a wide variety of functions and high-performance system extension requirements.
IBOX-V1K0/V1K1 uses up to 32GB of dual channel DDR4 3200 MT/s memory (both ECC and non-ECC) with higher memory bandwidth for better performance and efficiency. The new integrated AMD Radeon? Vega graphics with up to 11 compute units marks the cutting edge of embedded graphics. It supports up to four independent displays with up to 4K UHD resolution and 10-bit HDR, as well as DirectX 12 and OpenGL 4.4 for 3D graphics. The integrated video engine enables hardware-accelerated streaming of HEVC (H.265) video in both directions.
IBOX-V1K0/V1K1 adopts 10/100/1000 Mbps speeds Ethernet controller and flexible I/O interface options with: 1 x Mini-PCIe (full size), 1 x M.2 M Key, 1 x SATA Gen. 3 @ 6.0Gb/s, 2 x USB 3.1, 3 x USB 2.0, 3 x COM ports, watchdog timer, and GPIO to fulfill a wide variety of functions and high-performance system extension requirements.
| Model name | IBOX-V1K0 |
| System | |
| CPU |
AMD? Ryzen? Embedded V1000 series APU V1605 (2.0GHz, QC, 12-25W) |
| Chipset | AMD? Ryzen ? Embedded V1000 series APU integrated |
| BIOS | AMI UEFI Flash ROM |
| System memory | 2 x 260-pin DDR4 SDRAM max. up to 32GB |
| Graphic | AMD? VEGA graphics up to 11CU |
| Watchdog timer | Yes |

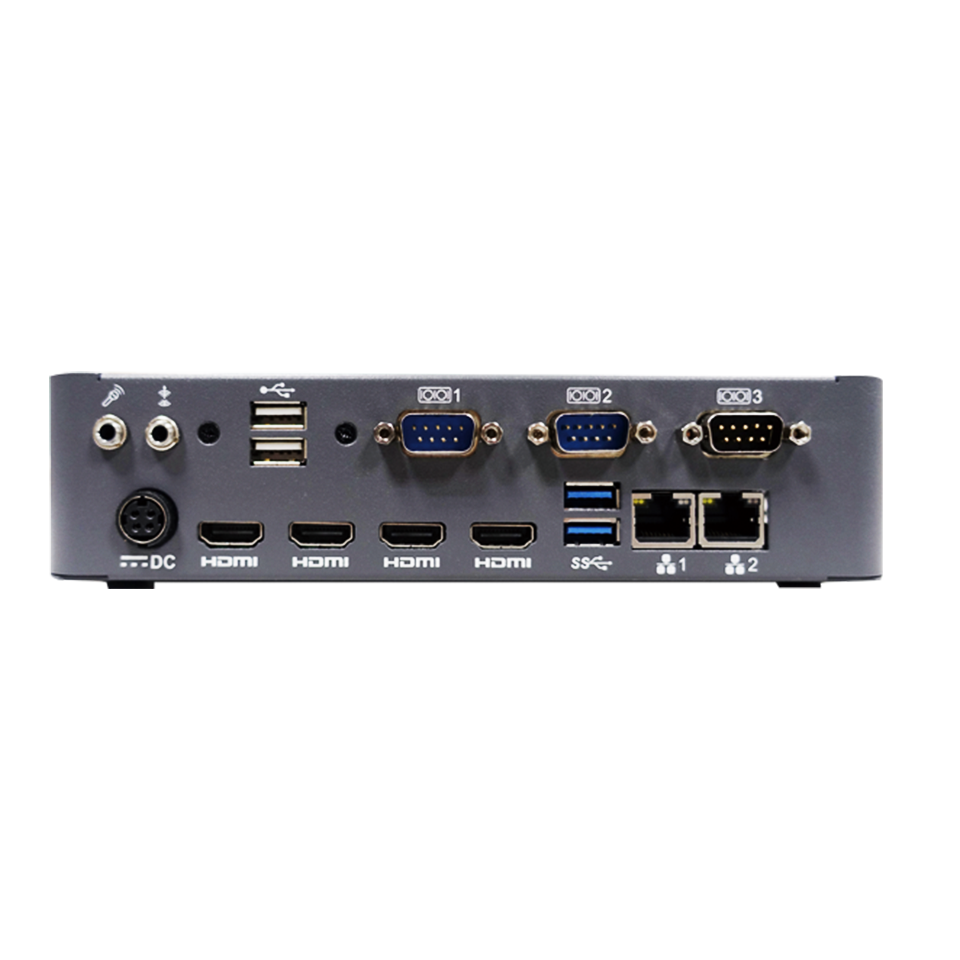

| I/O | |
| USB | 2 x USB 3.1, 3 x USB 2.0 |
| COM | 3 x COM (2 x RS-232, 1 x RS-232/422/485) |
| LAN | 2 |
| Display | 4 x HDMI |
| Audio | Mic-in, Line-out |
| PS/2 | N/A |
| Others | 2 x SMA hole |
| Storage Support | |
| HDD | 1 x 2.5" HDD |
| M.2 | 1 x M.2 M-key 2260 |
| mSATA | N/A |
| Expansion | |
| Mini-PCIe | 1 (Full-size w/ Mico-SIM) |
| M.2 | N/A |
| Power | |
| Power supply | DC 12V input |
| Environmental | |
| Operating Temperature | 0°C ~ 40°C |
| Storage Temperature | -20°C ~ 60°C |
| Relative Humidity | 0% ~ 90% (non-condensing) |
| Mechanical | |
| Construction | Metal |
| Standard color | Grey |
| Mounting | Desktop |
| Weight | 1.77 kg |
| Dimensions (W)x(D)x(H)mm | 206.4mm(W) x 188.5mm(D) x 48.9mm(H) |
