高效能嵌入式電腦

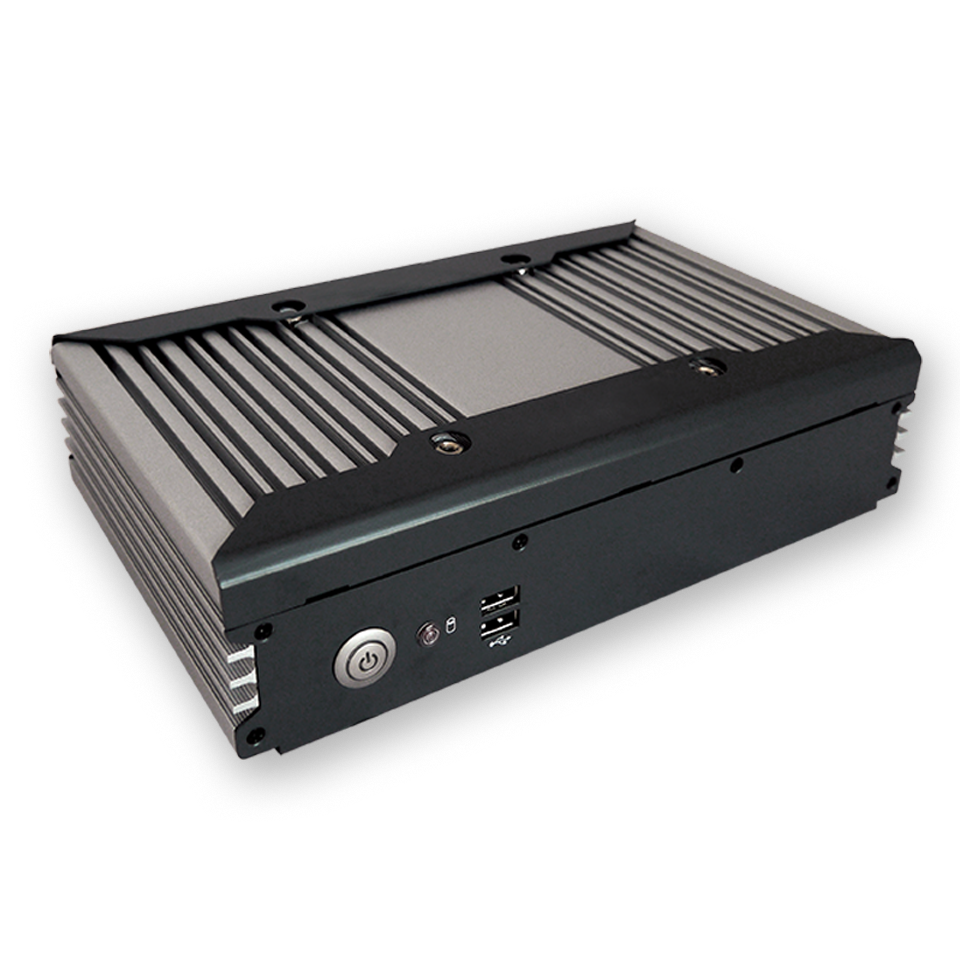

IBOX-WHL0-E-Type
Fanless Box system with Intel? 8th Gen Core? i7/i5/i3/Celeron? (Whiskey Lake-U) Processor
- ? Intel® 8th Gen Core™ i7/i5/i3/ Celeron® (Whiskey Lake-U) Processor support
- ? Dual display: 2 HDMI (DP)
- ? Two Intel Gigabit Ethernet ports
- ? 4 USB 3.1, 3 COM, 2 LAN, 1 Audio, 1DIO
- ? DC-in 12V
- ? Watchdog timer
- Supports Intel vPro, AMT technologies
主要特色
-
Multi Tasking
-
Fanless
| Model name | IBOX-WHL0 E Type |
| System | |
| CPU |
Intel? Core? i7-8665UE 1.7GHz quad core processor (TDP 15W) Intel? Core? i5-8365UE 1.6GHz quad core processor (TDP 15W) Intel? Core? i3-8145UE 2.2GHz dual core processor (TDP 15W) Intel? Celeron? 4305UE 2.0GHz dual core processor (TDP 15 |
| Chipset | Intel? Whiskey Lake-U integrated |
| BIOS | AMI SPI Flash ROM |
| System memory | 2 x 260-pin DDR4 2400MHz SDRAM; max. up to 32GB |
| Graphic | Intel? UHD 620 Gen. 9.5 Graphics |
| Watchdog timer | Yes |
| I/O | |
| USB | 4 x USB 3.1 |
| COM | 3 x COM (2 x RS232, 1 xRS232/ 422/485, RS485 with auto flow contorl) |
| LAN | 2 |
| Display | 2 x HDMI (Option 2x DP) |
| Audio | Mic-in, Line-in, Line-out |
| PS/2 | N/A |
| Others | 1 x DIO, 2 x SMA hole |
| Storage Support | |
| HDD | 1 x 2.5" HDD |
| M.2 | 1 x M.2 M-key 2280 (SATA, NVME) |
| mSATA | 1 (with Mini-PCIe) |
| Expansion | |
| Mini-PCIe | N/A |
| M.2 | 1 x M.2 M-Key 2280 (SATA, NVME); 1 x M.2 B-Key 3042 |
| Power | |
| Power supply | DC-Jack 12V input |
| Environmental | |
| Operating Temperature | 0°C ~ 50°C (Optional -20°C, -40°C) |
| Storage Temperature | -20°C ~ 80°C |
| Relative Humidity | 0% ~ 90% |
| Mechanical | |
| Construction | Aluminum extrusion and heavy-duty steel |
| Standard color | Silver |
| Mounting | Wall mount/VESA100 |
| Weight | 3.7 kg |
| Dimensions (W)x(D)x(H)mm | 260mm(W) x 146mm(D) x 63.9mm(H) |
下載
-
類型
Datasheet
發布日期2021/Aug/21
相關產品
-
了解更多高效能嵌入式電腦
IBOX-SKL2-E-Type
-
了解更多
Entry BOX PC
IBOX-APL7-D-TYPE
-
了解更多入門款嵌入式電腦

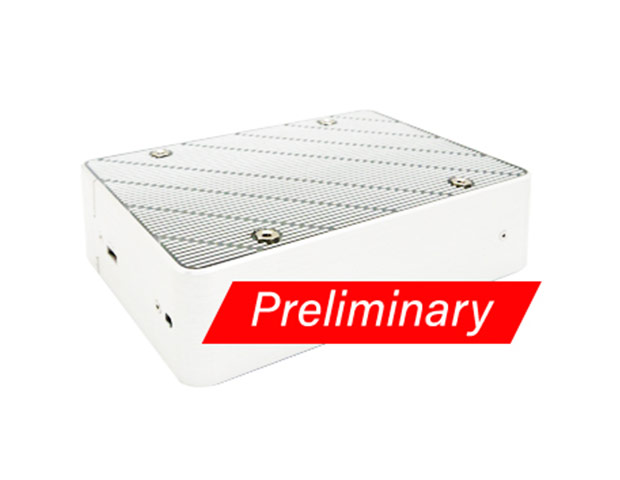

IBOX-APL7-C-TYPE
-
了解更多入門款嵌入式電腦

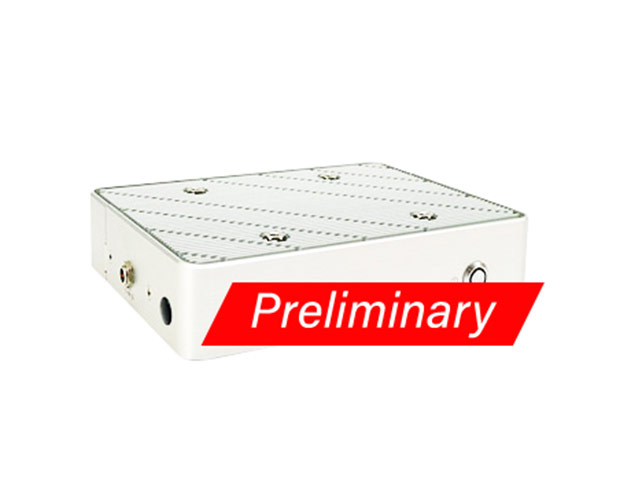

IBOX-APL7-B-TYPE
-
了解更多入門款嵌入式電腦

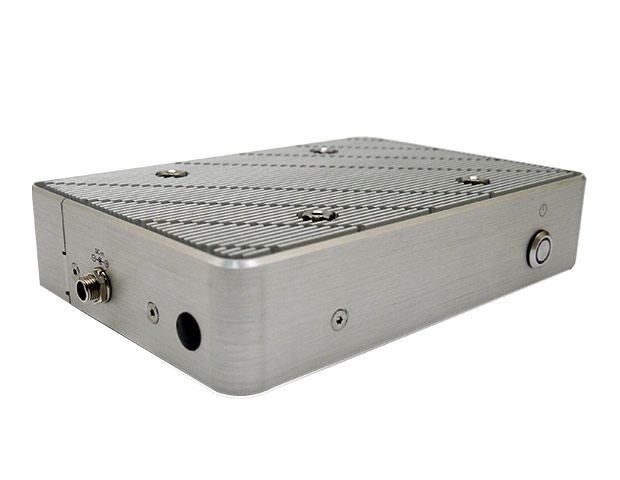

IBOX-BSW1-B-TYPE
