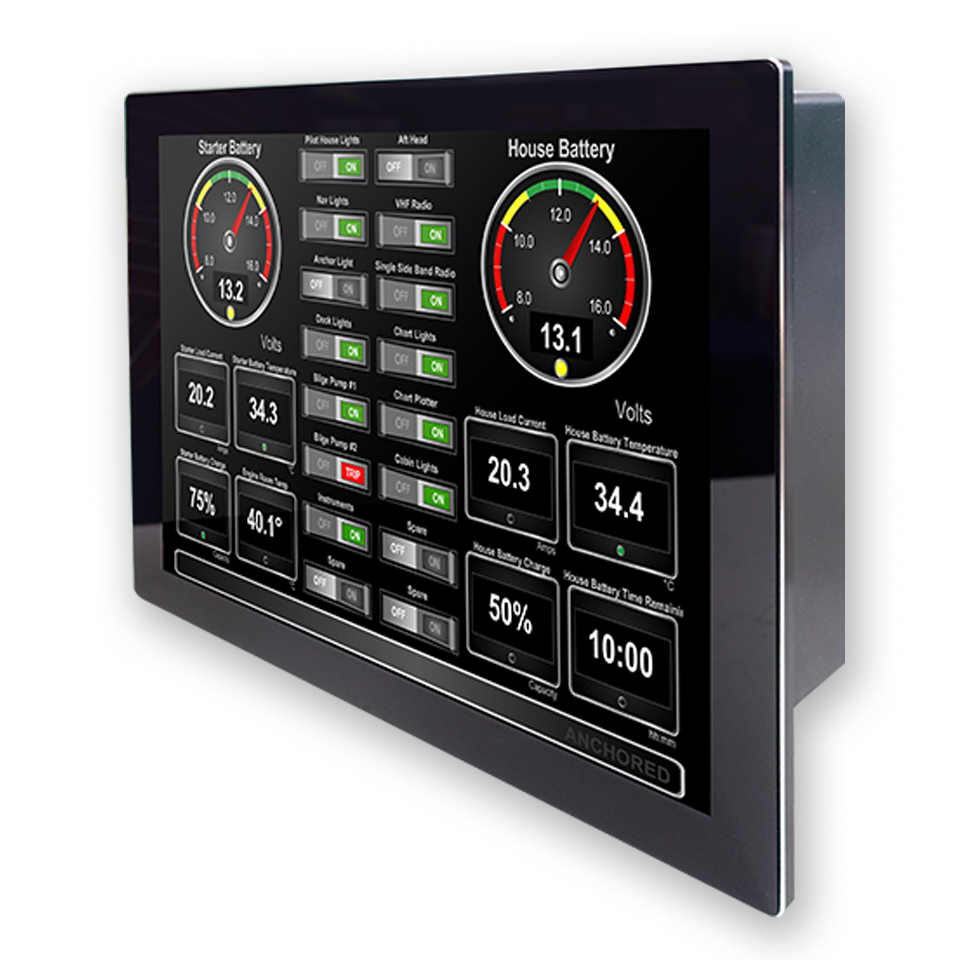

IPPS-1768-SKL2-WR00
IP65 17" P-CAP Fanless Panel PC with Intel? 6th Core? i7/i5/i3/Celeron? processors
- Intel® 6th Core™ i7/i5/i3/Celeron® processors
- 17" LCD, 1028 x 1024, 1600nit
- 10-Point P-CAP touch screen
- 2 USB, 2 LAN
- IP65 and Fanless design
- DC 24~110V input with M12 connector
主要特色
-
Full IP65
-

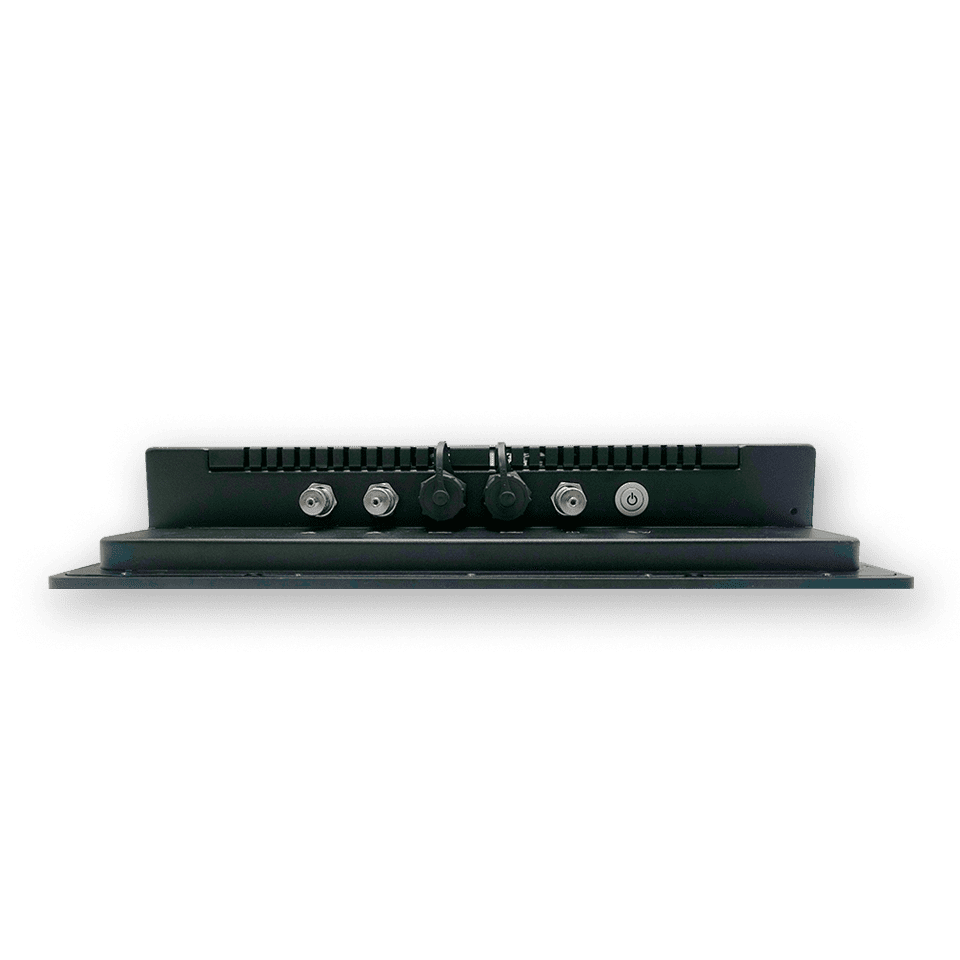

M12 Connectors
-
Fanless

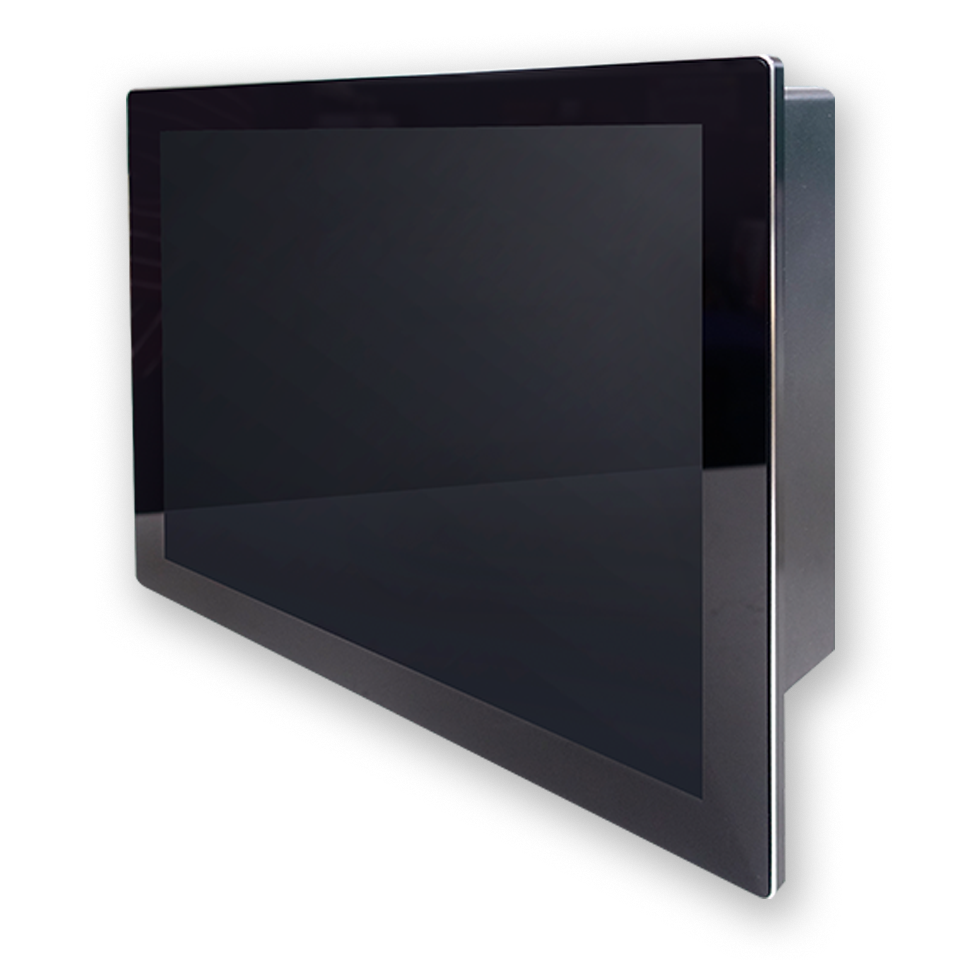

IPPS-1768-SKL2-WR00 is 17” rugged panel computers are designed to increase reliability and readability under the impact of all elements, like snow, water, dust, heat, cold, and sun. These PCs are made with industrial-grade components that allow them to operate in a much wide range of temperatures than traditional units and can go from cold to hot environments without condensation build-up. They are completely waterproof and vibration resistant and boast an ingress protection rating of IP65 or higher.
IPPS-1768-SKL2-WR00 is rugged panel pc with 6th-generation Intel? CoreTM processor deliver a reliable, durable, and versatile platform for use in industrial environments. With two RS-232 serial ports and two Gigabit ethernet ports, it supports a wide variety of serial interfaces. It also features a 1600nits LCD panel offering a sunlight-readable, projected capacitive multi-touch, glove-friendly, providing an excellent user experience for HMI applications in outdoor and hazardous environment.
IPPS-1768-SKL2-WR00 is rugged panel pc with 6th-generation Intel? CoreTM processor deliver a reliable, durable, and versatile platform for use in industrial environments. With two RS-232 serial ports and two Gigabit ethernet ports, it supports a wide variety of serial interfaces. It also features a 1600nits LCD panel offering a sunlight-readable, projected capacitive multi-touch, glove-friendly, providing an excellent user experience for HMI applications in outdoor and hazardous environment.
| Model Name | IPPS-1768-SKL2-WR00 |
| LCD | |
| Display Type | 17" SXGA TFT LCD |
| Resolution | 1280 x 1024 |
| Brightness | 1600 cd/m2 |
| Pixel Pitch (H/V) | 0.264(H) x 0.264(V) |
| Constrast Ratio | 1000:1 |
| Viewing Angle (H/V) | 170°/160°/(typ.) |
| Backlight MTBF (typ.) | 70,000 hrs (typ.) |
| Touch Screen Type | P-CAP 10-points |
| LCD Color | 16.2M |
| System | |
| CPU |
Intel? Core? i7-6600U 2.6GHz QC (15W) Intel? Core? i5-6300U 2.4GHz DC (15W) Intel? Core? i3-6100U 2.3GHz DC (15W) Intel? Celeron? 3955U 2.0GHz DC (15W) |
| Chipset | Intel?Skylake-U integrated |
| Memory | 1 x260-pin DDR4 2400MHz SDRAM; up to 16GB |
| Graphic | Intel? HD Graphics 520/510 |
| Watchdog Timer | Yes |
| Indicators | N/A |
| Controls | N/A |
| Expansion Slot |
1 x Mini-PCIe (Full size with SIM) 1 x Mini-PCIe (Full size, share with mSATA) |
| System I/O | |
| USB | 2 x USB 2.0 (TypeA w/waterproof) |
| COM | N/A |
| LAN | 2 x LAN(M12) |
| Display | N/A |
| Audio | N/A |
| Storage Support | |
| HDD | 1 |
| mSATA | 1 |
| Power | |
| Power Supply | DC 24~110V input, M12 connector |
| Environment | |
| Operating Temperature | 0°C ~ 50°C |
| Storage Temperature | -20°C ~ 80°C |
| Relative humidity | 0% ~ 90% (non-condensing) |
| IP level | IP65 |
| Mechanical | |
| Standard Color | Black |
| Weight | 7.14 kg |
| Dimensions | 392.2 mm(W) x 66.4 mm(D) x 324.6 mm(H) |
| Mounting | VESA 100 x 100 |
