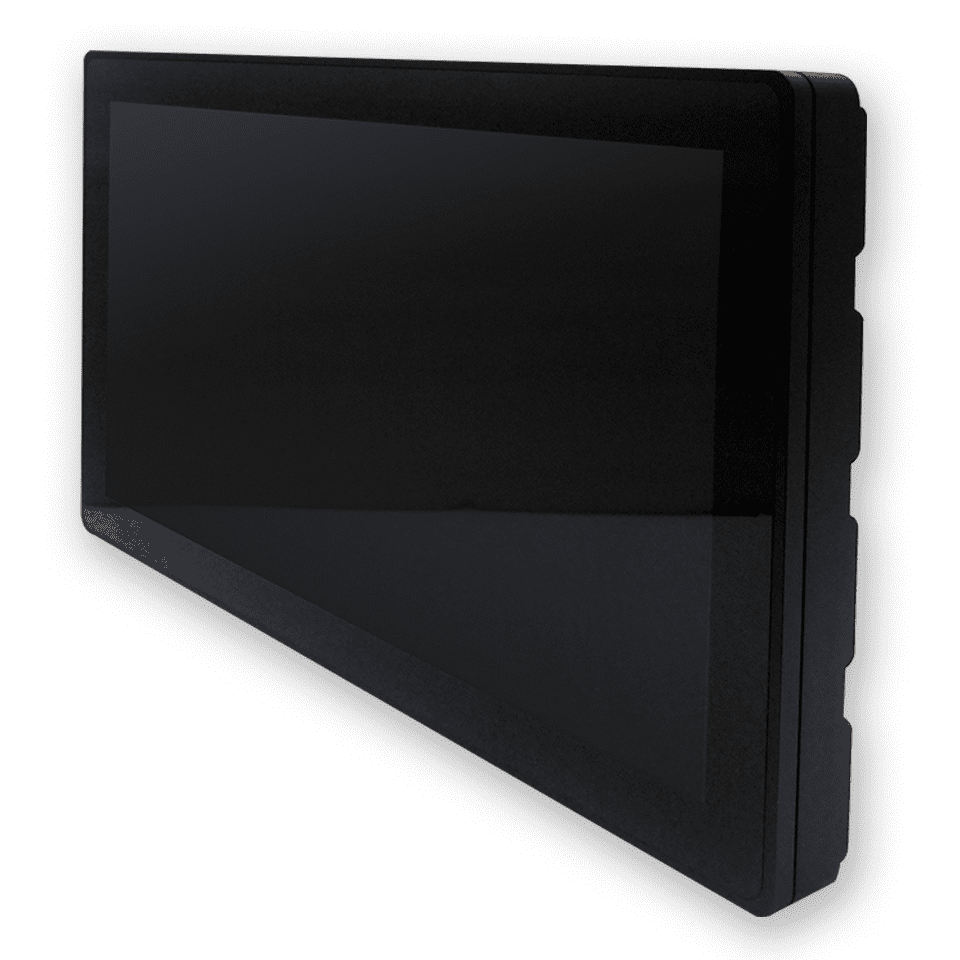

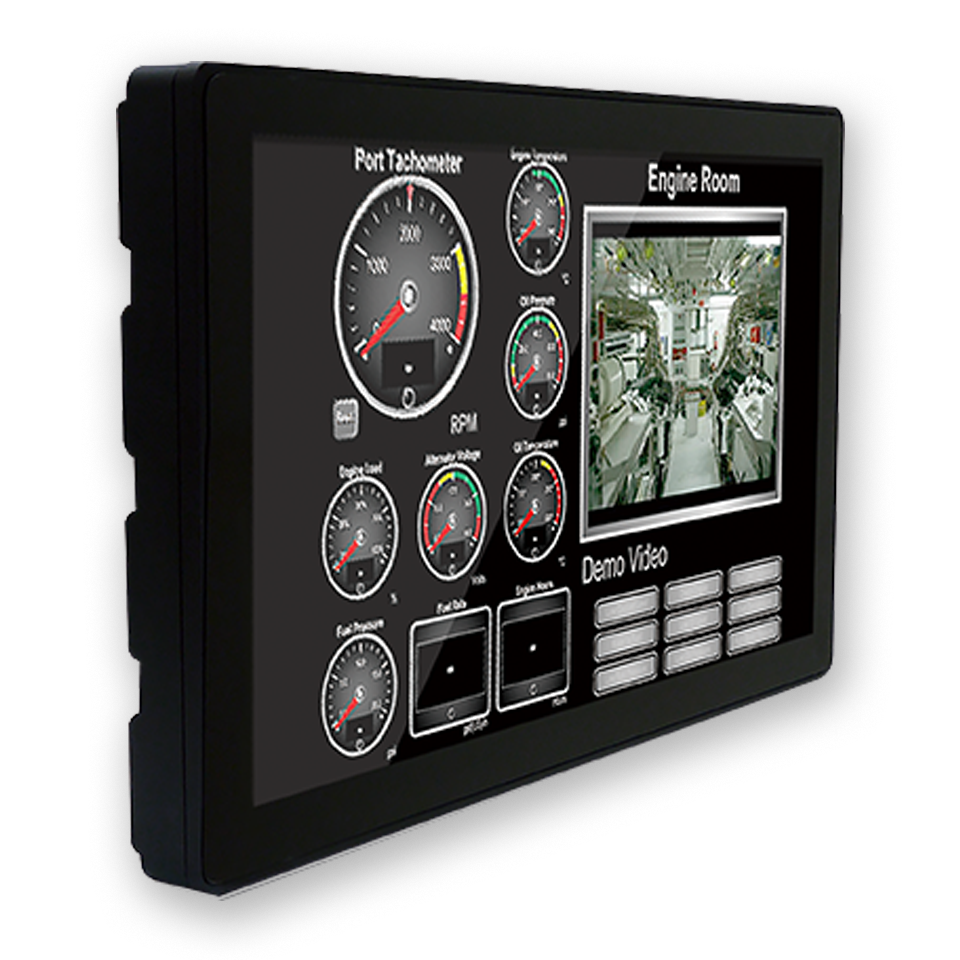

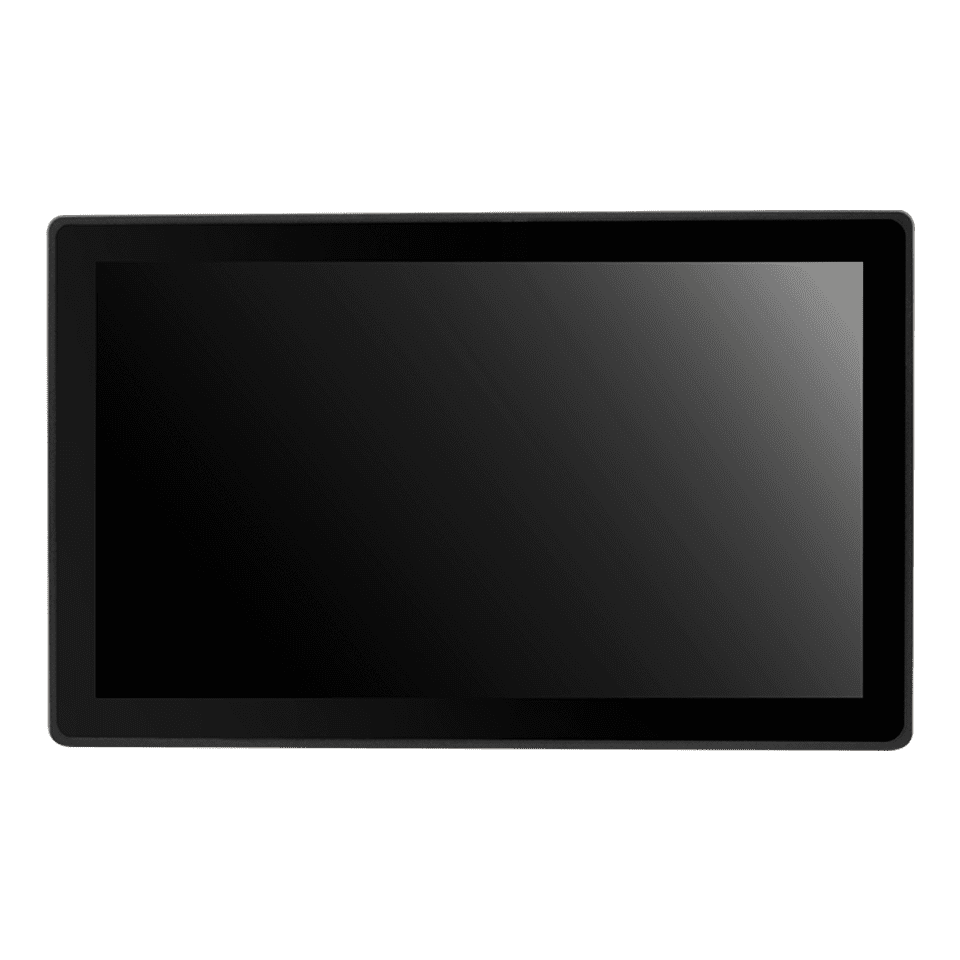

IPPS-2118-SKL2-KBL5-WP
IP68 21.5" P-CAP Fanless Panel PC with Intel? 6th/7th Core? i7/i5/i3/Celeron? processors
- Intel® 6th/7th Core™ i7/i5/i3/Celeron® processors
- 21.5" LCD, 1920 x 1080, 1600nit
- P-CAP 10 points touch screen
- 2 USB, 2 COM, 2 LAN
- Advanced Optical Bonding
- IP68 and fanless design
- DC 12V input with M12 connector
主要特色
-

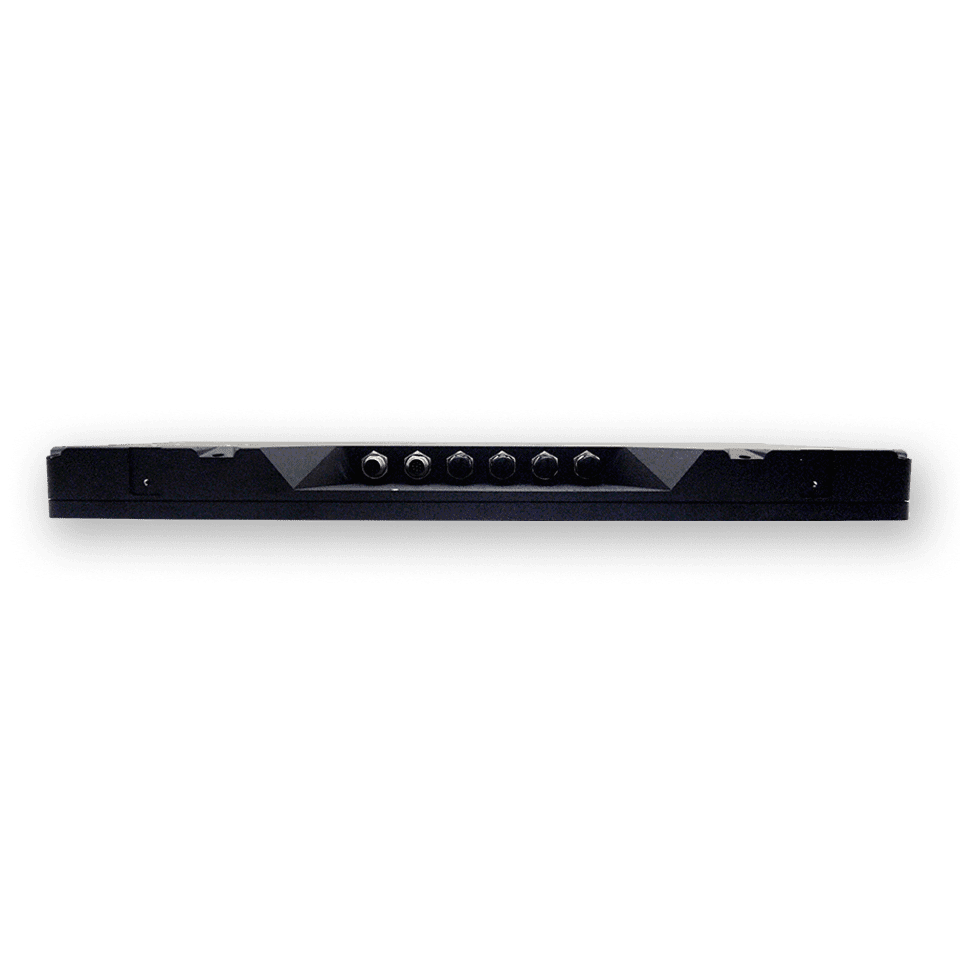

M12 Connectors
-
Full IP68
-
Fanless
IPPS-2118-SKL2/ KBL5-WP is 21.5” rugged panel computers are designed to increase reliability and readability under the impact of all elements, like snow, water, dust, heat, cold, and sun. These PCs are made with industrial-grade components that allow them to operate in a much wide range of temperatures than traditional units and can go from cold to hot environments without condensation build-up. They are completely waterproof and vibration resistant and boast an ingress protection rating of IP65 or higher.
IPPS-2118-SKL2/ KBL5-WP is rugged panel pc with 6th/7th-generation Intel? CoreTM processor deliver a reliable, durable, and versatile platform for use in industrial environments. With two RS-232 serial ports and two Gigabit ethernet ports, it supports a wide variety of serial interfaces. It also features a 1600nits LCD panel offering a sunlight-readable, projected capacitive multi-touch, glove-friendly, providing an excellent user experience for HMI applications in outdoor and hazardous environment.
IPPS-2118-SKL2/ KBL5-WP is rugged panel pc with 6th/7th-generation Intel? CoreTM processor deliver a reliable, durable, and versatile platform for use in industrial environments. With two RS-232 serial ports and two Gigabit ethernet ports, it supports a wide variety of serial interfaces. It also features a 1600nits LCD panel offering a sunlight-readable, projected capacitive multi-touch, glove-friendly, providing an excellent user experience for HMI applications in outdoor and hazardous environment.
| Model Name | IPPS-2118-SKL2/KBL5-WP |
| LCD | |
| Display Type | 21.5" Full HD TFT LCD |
| Resolution | 1920 x 1080 pixel |
| Brightness | 1600 cd/m2 (250 cd/m2 optional ) |
| Pixel Pitch (H/V) | 0.24825mm x 0.24825mm |
| Constrast Ratio | 900:1 |
| Viewing Angle (H/V) | 170°/160°/(typ.) |
| Backlight MTBF (typ.) | 100,000 hrs (typ.) |
| Touch Screen Type | P-CAP 10-points |
| LCD Color | 16.7M |
| System | |
| CPU |
Intel? Core? i7-6600U 2.6GHz QC (15W) Intel? Core? i5-6300U 2.4GHz DC (15W) Intel? Core? i3-6100U 2.3GHz DC (15W) Intel? Celeron? 3955U 2.0GHz DC (15W) Intel? 7th Gen Core? i7/i5/i3 processors (LGA1151) |
| Chipset | Intel? Skylake-U integrated / Intel? H110 PCH |
| Memory | 1 x 260-pin DDR4 2133MHz SDRAM; max. up to 16GB / 2 x 260-pin DDR4 2133MHz SDRAM; max. up to 32GB |
| Graphic | Intel? HD Graphics 520/510 / or Intel? HD Gen. 9 Graphics |
| Watchdog Timer | Yes |
| Indicators | 1 x Power LED,1x HDD LED |
| Controls | N/A |
| Expansion Slot | 1 x Mini-PCIe (Full size with SIM), 1 x Mini-PCIe (Full size, share with mSATA) |
| System I/O | |
| USB | 2 x USB 2.0 |
| COM | 2 x COM(2 x RS232) |
| LAN | 2 x Gigabit Ethernet (1 x Intel? I210, 1 x Intel? I219LM ) |
| Display | N/A |
| Audio | N/A |
| Storage Support | |
| HDD | 1 |
| mSATA | 1 |
| Power | |
| Power Supply | DC 12V input, M12 connector (optional 9-36V ) |
| Environment | |
| Operating Temperature | 0°C ~ 50°C (optional -30°C ) |
| Storage Temperature | -20°C ~ 80°C |
| Relative humidity | 0% ~ 90% (non-condensing) |
| IP level | IP68 |
| Mechanical | |
| Standard Color | Silver + Black |
| Weight | 7.7 kg |
| Dimensions | 544 mm(W) x 43.5 mm(D) x 335.5 mm(H) |

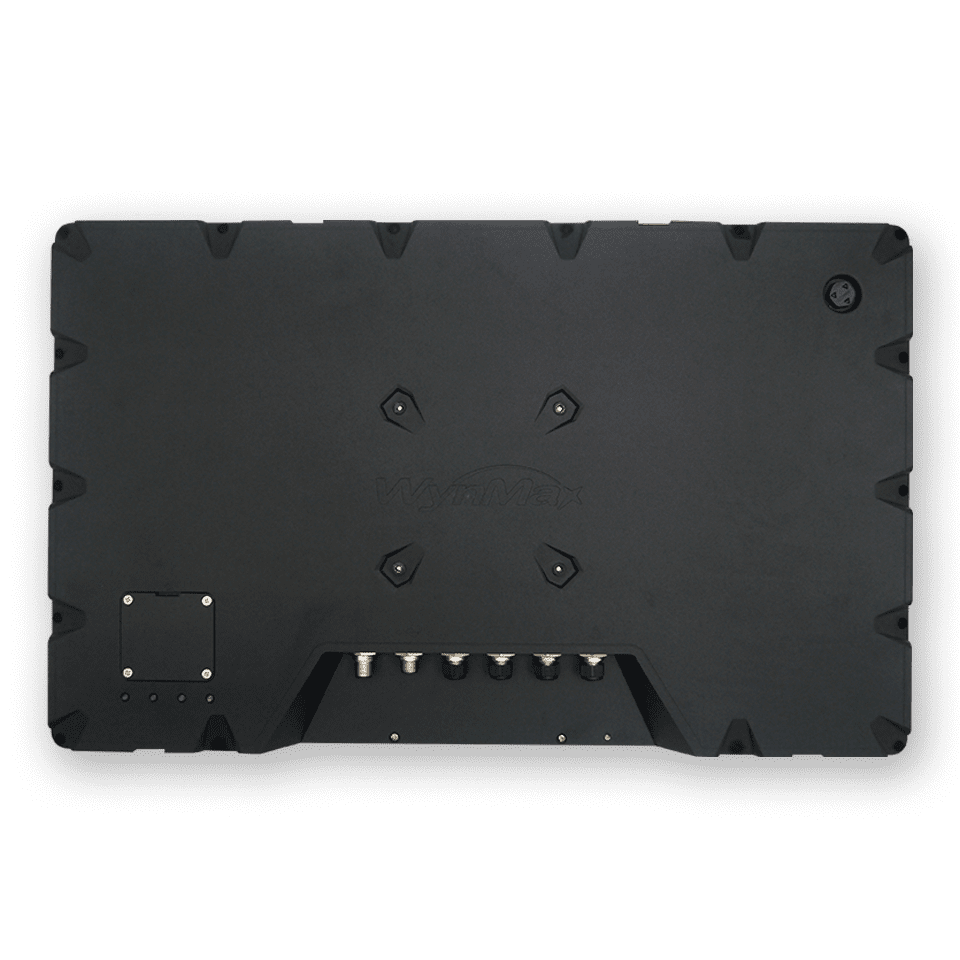

| Mounting | VESA |
