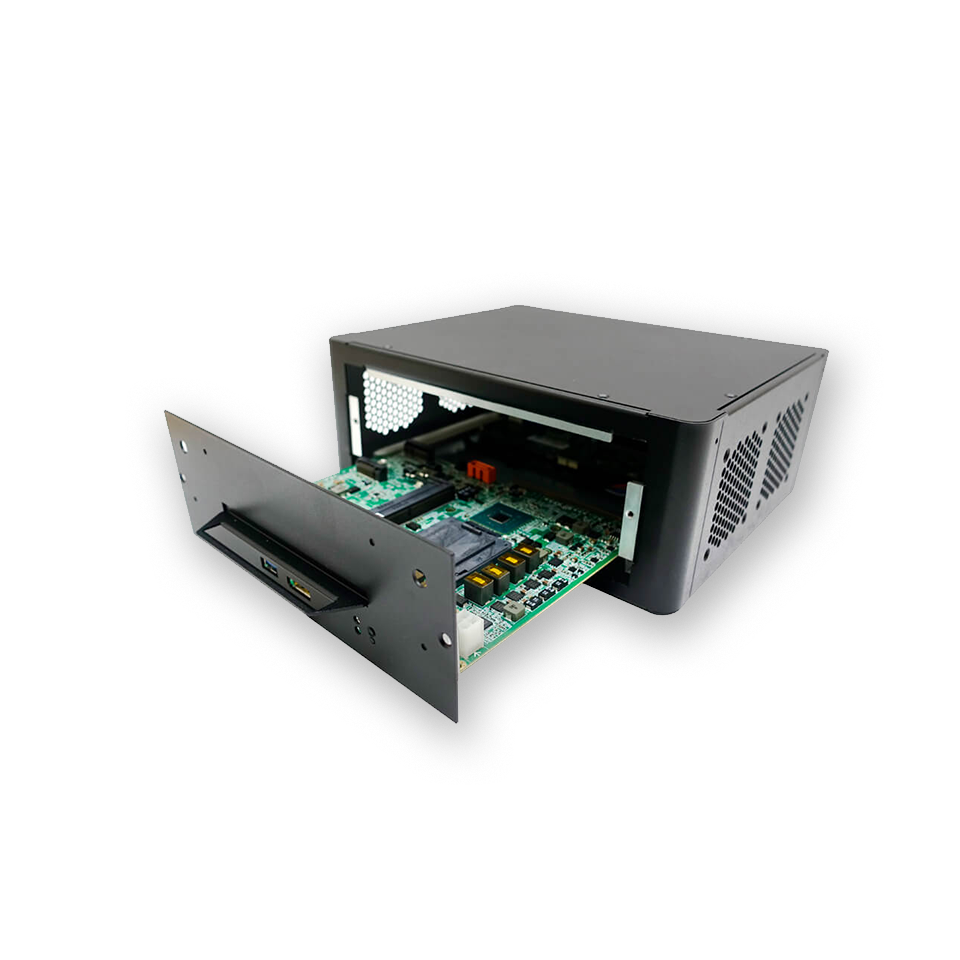

Intel? SKM Box Computer
ISKM-CFL3-Q370
Intel? Smart KIOSK Module Box system with Intel? 8th Gen Processor
- Intel® 8th Gen Core i7/i5/i3 Processor
- 2 x DDR4 SO-DIMMs up to 32GB
- HDMI/DP , 1 x LAN, 2x USB 3.1 , 2x USB 3.0 ,6 x USB 2.0, 7 x COM, 1 x DIO, 1 x AUDIO
- 2 x Mini PCIe (1 x w/ uSIM), 1 x M.2 M-Key 2280(SSD socket 3), 1 x SATA III
- Power input : DC-IN Jack 12Vdc or 19Vdc ~24Vdc
ISKM-CFL3-Q370 is a high-performance interactive kiosk solution based on Intel's Smart Kiosk Module. The heart of the Smart KIOSK Box Computer includes an Intel 8th Gen. Core i7/i5/i3 microprocessor. Graphics functions are handled by an Intel HD Gen. 9-LP graphics processing unit (GPU). The system also features two DDR4 SO-DIMMs, for up to 32 Gbytes of memory, and a host of interfaces, including HDMI, DP, USB, Serial, UART, and M.2.
The scalable modular approach and simple connection also result in easier servicing, maintaining, upgrading, and integrating new technologies into kiosks, while reducing costs as well as the total cost of ownership. It is also designed to support workload accelerators for analytics and artificial intelligence (AI) in the future as the demand for those applications grows. Note that backward compatibility is included for Intel's Smart Display Module Small (SDM-S) and Smart Display Module Large (SDM-L) form factors that are common for integrated displays.
The scalable modular approach and simple connection also result in easier servicing, maintaining, upgrading, and integrating new technologies into kiosks, while reducing costs as well as the total cost of ownership. It is also designed to support workload accelerators for analytics and artificial intelligence (AI) in the future as the demand for those applications grows. Note that backward compatibility is included for Intel's Smart Display Module Small (SDM-S) and Smart Display Module Large (SDM-L) form factors that are common for integrated displays.
| Model name | ISKM-CFL3-Q370 |
| Construction | Metal |
| Standard color | Black |
| CPU | Intel? 8th Gen Core? i7/i5/i3/Pentium?/ Celeron?(LGA1151) Processor(max. TDP 65W) |
| Chipset | Intel? Q370 PCH |
| BIOS | AMI SPI Flash ROM |
| System memory | 2 x 260-pin DDR4 2666MHz SDRAM; max. up to 32GB |
| Graphic | Intel? HD Gen. 9-LP Graphics |
| Watchdog Timer | Interval: Programmable 1 ~ 255 sec. Output: System reset |
| System I/O | |
| USB | 2 x USB 3.0, 2 x USB 3.1, 6 x USB 2.0 |
| COM | 7 x COM |
| LAN | 1 |
| Display | 1 x HDMI, 1 x DP |
| Audio | Mic-in, Line-out |
| PS/2 | N/A |
| Others | 2 x I2C, 1x GPIO |
| Storage Support | |
| HDD | 1 x 2.5" HDD |
| CF | N/A |
| CFast | N/A |
| M.2 | 1 x M.2 M-key 2280(SSD) slot |
| System | |
| Indicators | 1 x Power LED |
| Controls | 1 x Power on switch |
| Power | |
| Power supply | DC-IN Jack 12Vdc or 19Vdc~ 24Vdc |
| Environment | |
| Operating Temperature | 0°C ~ 40°C |
| Storage Temperature | -20°C ~ 60°C |
| Relative Humidity | 0% ~ 90% (non-condensing) |
| Mechanical | |
| Mounting | Desktop/Wall mount |
| Weight | 2.9 kg |
| Dimensions (W)x(D)x(H)mm | 239mm(W) x 196mm(D) x 90mm(H) |
