主要特色
-
Full IP65
-
M12 Connectors
-
Fanless

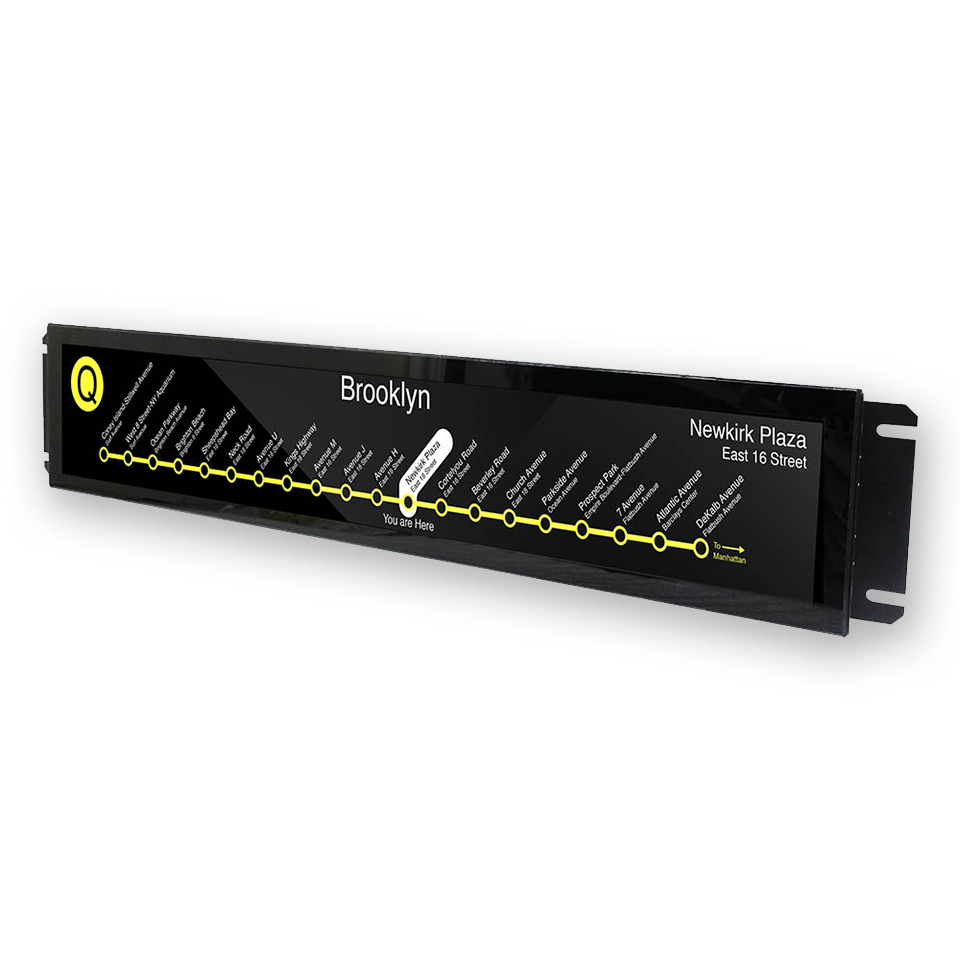

ITRP-2845-APL2 is a fanless Passenger Information System, EN 50155 compliant, serving as a reliable platform to provide passenger information on wide versatility of vehicles, such as trains and trams. It features a 28 and 38 inch stretched LCD panel.
Powered by Intel? Atom?/Pentium?/Celeron? (ApolloLake SoC) Processor, and designed from the ground up to be robustness with IP (Ingress protection) level 65. It supports EN 50155 T1 level, for smoothly implementation in a wide working temperature ranging from -25°C to 55°C, to make sure its best operation in harsh environment and deliver the real-time information to passengers.
Powered by Intel? Atom?/Pentium?/Celeron? (ApolloLake SoC) Processor, and designed from the ground up to be robustness with IP (Ingress protection) level 65. It supports EN 50155 T1 level, for smoothly implementation in a wide working temperature ranging from -25°C to 55°C, to make sure its best operation in harsh environment and deliver the real-time information to passengers.
| Model Name | ITRP-2845-APL2 |
| LCD | |
| Display Type | 28" Resizing TFT LCD |
| Resolution | 1920x357 |
| Brightness | 1000 nits |
| Color | 16.7M |
| Pixel Pitch (H/V) | 0.3637mm x 0.3637mm |
| Constrast Ratio | 6500:1 |
| Viewing Angle (H/V) | 178°(H),178°(V) |
| Size | 28" |
| System | |
| Chipset | Intel? Apollo Lake-I SoC integrated |
| Memory | 1 x 204-pin DDR3L 1866MHz SDRAM; max. up to 8GB |
| Graphic | Intel? HD Gen. 9-LP Graphics |
| Indicators | N/A |
| Controls | N/A |
| Expansion Slot |
1 x Mini-PCIe (Half size) 1 x Mini-PCIe (Full size, share with mSATA) |
| Processor |
Intel? Atom? x7-E3950 1.6GHz,QC (12W) Intel? Atom? x5-E3940 1.6GHz,QC (9.5W) Intel? Atom? x5-E3930 1.3GHz,DC (6.5W) Intel? Pentium? N4200 1.1GHz,QC (6W) Intel? Celeron? N3350 1.1GHz, DC, (6W) |

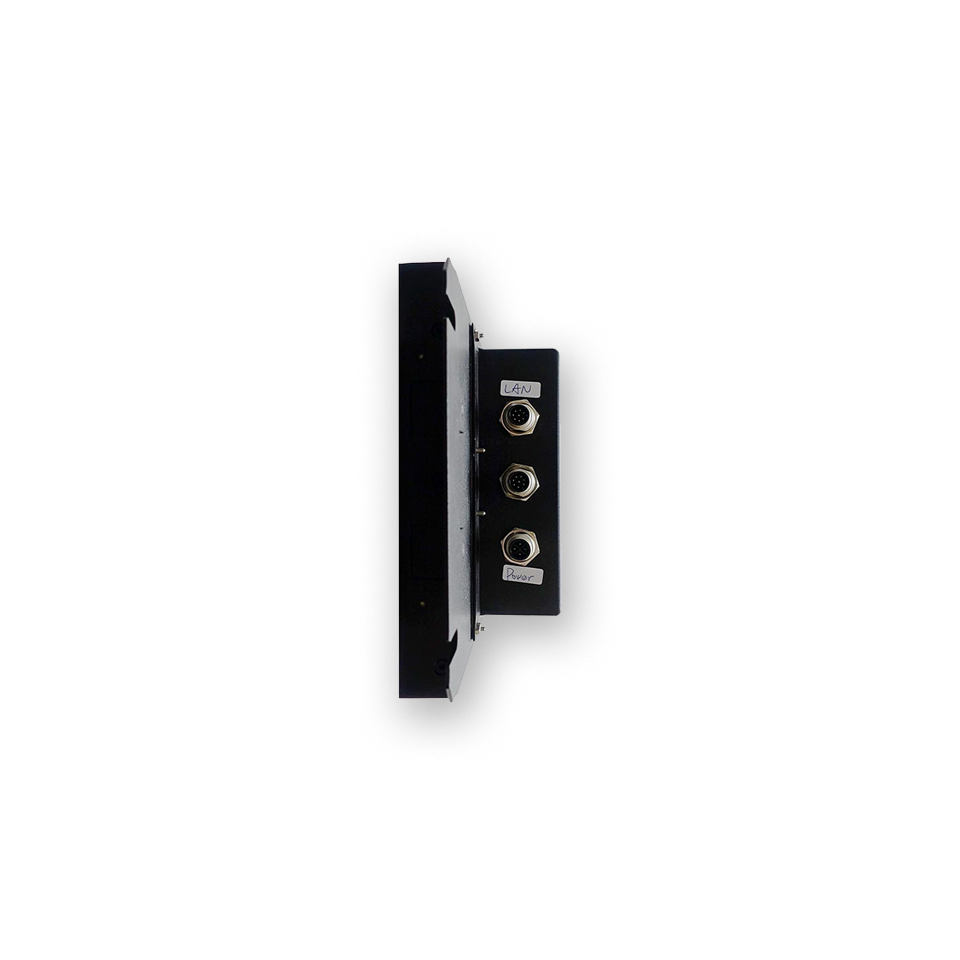

| I/O | 1x HMDI, 2 x USB 2.0, 1 x LAN Connector Type: M12 |
| OS Support | Win10, Linux |
| System I/O | |
| LAN | 1 x Gigabit Ethernet (Intel? I211) |
| Storage Support | |
| mSATA | 1 x mSATA |
| Power | |
| Power Supply | 110 Vdc input, M12 connector (24/36/48/72/96 Vdc optional) |
| Environment | |
| Operating Temperature | EN50155 T1 -25°C ~ 55°C |
| Storage Temperature | -40°C ~ 80°C |
| Relative humidity | 0% ~ 90% (non-condensing) |
| IP level | Full IP65 |
| Vibration,Shock | EN50155 |
| Mechanical | |
| Weight | 6.94 kg |
| Dimensions | 815 mm(W) x 68.6 mm(D) x 178.1 mm(H) |
