交通專用長條屏螢幕電腦
ITRP-2845-SKL2
28" EN50155 Railway Full IP65 Fanless Panel PC
- Intel® 6th Skylake mobile processor support
- 28" LCD, 1920 x 357, 1000 nits
- EN50155 certificated for railway
- Full IP65 and fanless design
- Support 24/36/48/72/96/110 VDC input with M12 connector
- Anti-Shock and vibration
主要特色
-
Full IP65
-
M12 Connectors
-

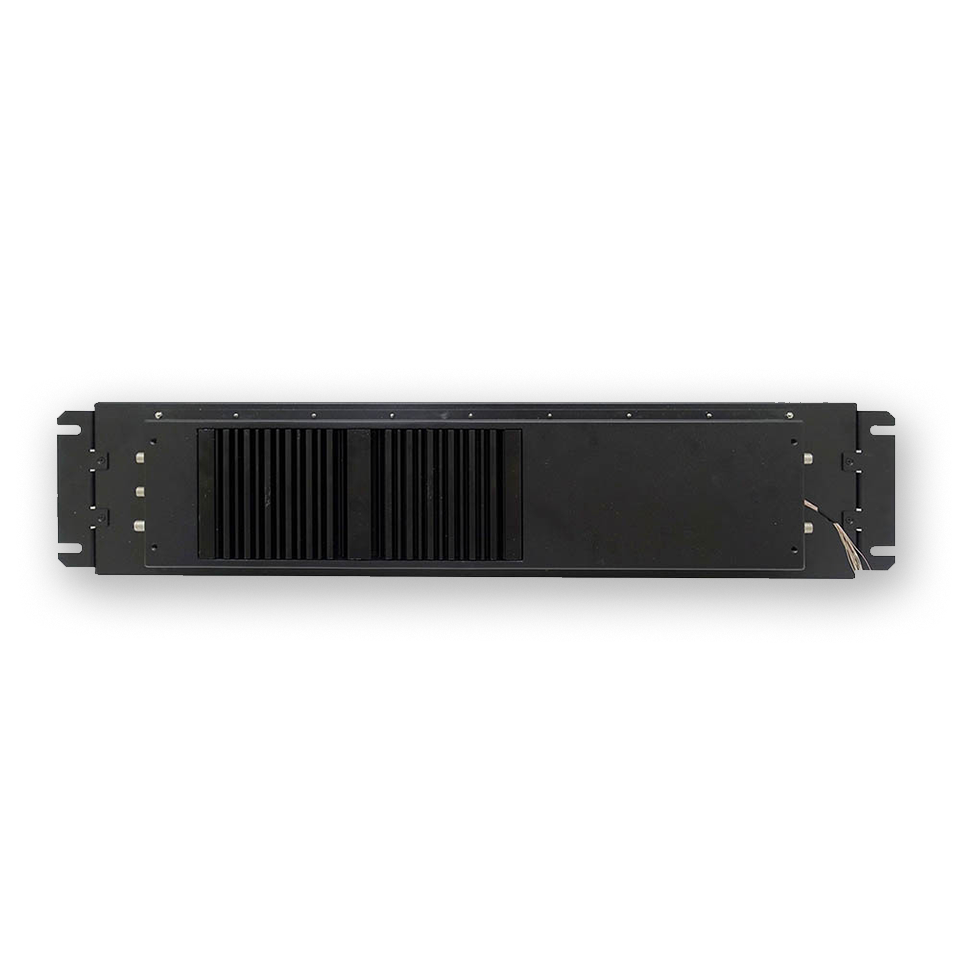

Fanless

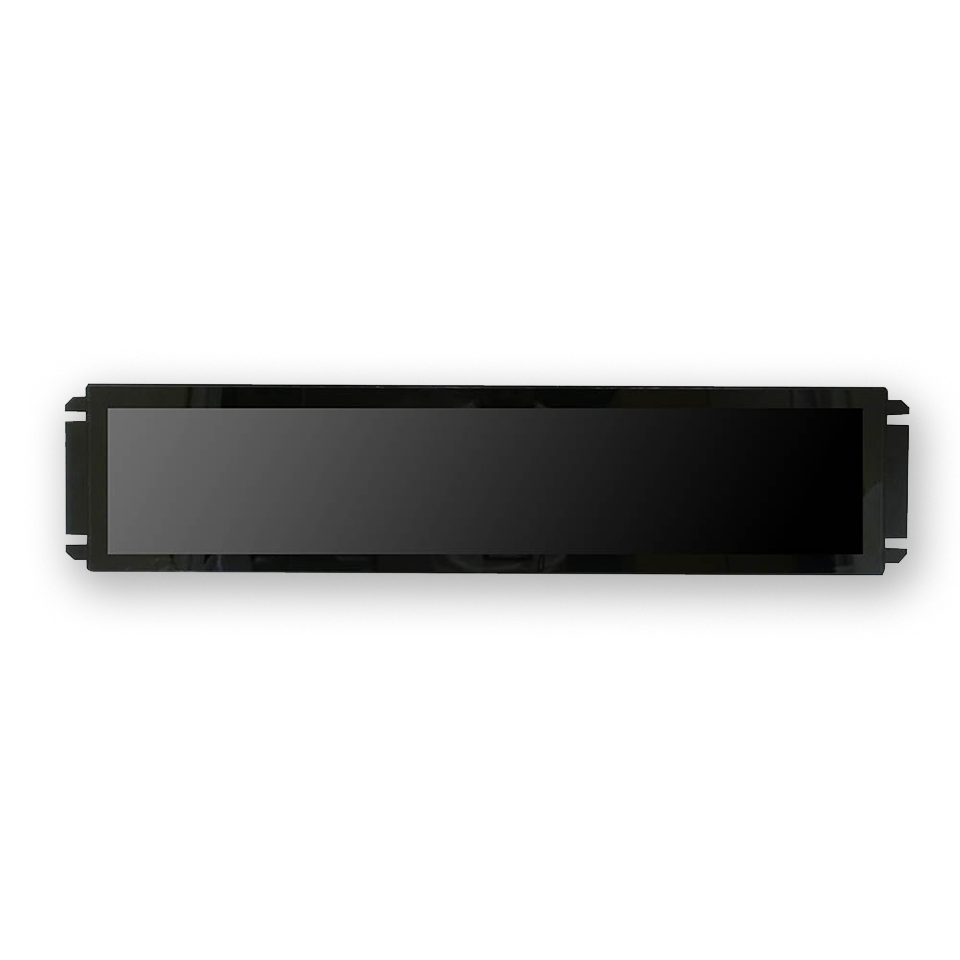

ITRP-2845-SKL2 is a fanless Passenger Information System, EN 50155 compliant, serving as a reliable platform to provide passenger information on wide versatility of vehicles, such as trains and trams. It features a 28 and 38 inch stretched LCD panel.
Powered by Intel? 6th Generation processor, and designed from the ground up to be robustness with IP (Ingress protection) level 54. It supports EN 50155 T1 level, for smoothly implementation in a wide working temperature ranging from -25°C to 55°C, to make sure its best operation in harsh environment and deliver the real-time information to passengers.
Powered by Intel? 6th Generation processor, and designed from the ground up to be robustness with IP (Ingress protection) level 54. It supports EN 50155 T1 level, for smoothly implementation in a wide working temperature ranging from -25°C to 55°C, to make sure its best operation in harsh environment and deliver the real-time information to passengers.
| Model Name | ITRP-2845-SKL2 |
| LCD | |
| Display Type | 28" Resizing TFT LCD |
| Resolution | 1920x357 |
| Brightness | 1000 nits |
| Color | 16.7M |
| Pixel Pitch (H/V) | 0.3637mm x 0.3637mm |
| Constrast Ratio | 6500:1 |
| Viewing Angle (H/V) | 178°(H),178°(V) |
| Size | 28" |
| System | |
| Chipset | Intel? Skylake-U integrated |
| Memory | 1 x 260-pin DDR4 2133MHz SDRAM; max. up to 16GB |
| Graphic | Intel? HD Graphics 520/510 |
| Indicators | N/A |
| Controls | N/A |
| Expansion Slot |
1 x Mini-PCIe (Full size with SIM) 1 x Mini-PCIe (Full size, share with mSATA) |
| Processor |
Intel? Core? i7-6600U 2.6GHz dual coreprocessor (TDP 15W) Intel? Core? i5-6300U 2.4GHz dual coreprocessor (TDP 15W) Intel? Core? i3-6100U 2.3GHz dual coreprocessor (TDP 15W) Intel? Celeron? 3955U 2.0GHz dual coreprocessor (TDP 15W) |
| I/O | 1 x COM ,1x HMDI, 2 x USB 2.0, 2 x LAN Connector Type: M12 |
| OS Support | Win10, Linux |
| System I/O | |
| LAN | 2 x Gigabit Ethernet (1 x Intel? I210, 1 x Intel?I219LM) |
| Storage Support | |
| mSATA | 1 x mSATA |
| Power | |
| Power Supply | 110 Vdc input, M12 connector (24/36/48/72/96 Vdc optional) |
| Environment | |
| Operating Temperature | EN50155 T1 ; -25°C ~ 55°C |
| Storage Temperature | -40°C ~ 80°C |
| Relative humidity | 0% ~ 90% (non-condensing) |
| IP level | Full IP65 |
| Vibration,Shock | EN50155 |
| Mechanical | |
| Weight | 6.94 kg |
| Dimensions | 815 mm(W) x 68.6 mm(D) x 178.1 mm(H) |
